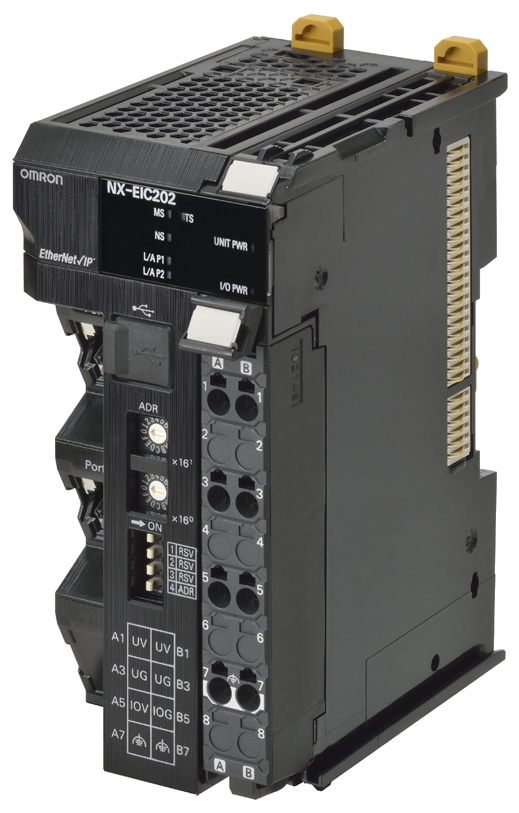

NX-EIC202

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Communications Other
Device Profile
Communications Adapter: 0x0C

Saved to Favorites



Nx eic202

Choice of functionality and performance.

Integration of Standard I/O and Safety.

Intuitive and efficient safety programming with PLCopen functions.

Features include:

  • Integrated control: Standard I/O and safety units can be mixed within an I/O station.
  • Integrated design environment: Machine and safety control can be designed using one software.
  • Conforming to IEC 61131-3 standard: IEC 61131-3 function blocks for safety control, as recommended by PLCopen, are supported.
  • Saving space: Modular design allows the minimum width of the standard I/O unit to be 12 mm.
  • Space can be reduced by 70% compared to the existing terminal blocks. (OMRON investigation)

Website
www.ia.omron.com
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11286 Year: 2017

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
