Graphite® HMIs

Network(s)
DeviceNet
Distinctive CIP Services
N/A
Product Category
Displays/Operators Interface
Device Profile
Generic Device: 0x00

Saved to Favorites

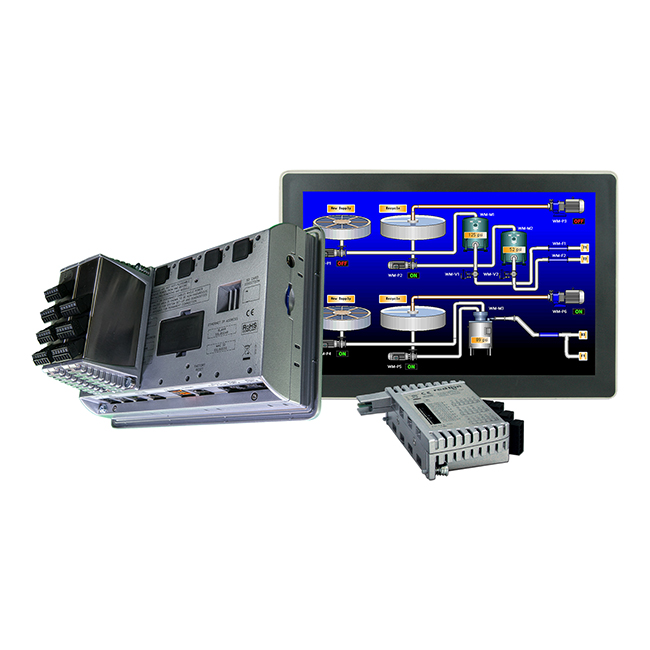

Graphite g512 screen and module

Red Lion’s rugged Graphite® advanced operator panels are the industry's first HMI touchscreens to combine rugged yet aesthetically-pleasing all-aluminum construction with a modular I/O architecture.  Available in 7, 9, 10, 12 and 15 inch displays, all of the Graphite models work with flexible plug-in modules and offer drag-and-drop protocol conversion, data logging and web-based monitoring and control. With UL Class 1, Division 2, ABS, ATEX and IECEx approvals, Graphite HMIs enable customers to connect, monitor and control processes in harsh environments.

From factories to extreme remote locations, Red Lion's Graphite HMI platform enables customers to easily connect, monitor and control processes across a diverse range of industries that include manufacturing, oil and gas and water/wastewater.

Phone
+1 717 767 6511
Email
Website
www.redlion.net/graphite
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11298 Year: 2015

Eds icon   Download the EDS File
Messaging
Explicit Peer-to-Peer
I/O Peer-to-Peer
Other Settings
Quick Connect
Master Scanner
Faulted Node Recovery
Configuration Consistency Value
Baud Rates
125K
250K
500K
I/O Slave Messaging
Bit Strobe
Polling
Cyclic
Change of State
Device Configuration
Hardware Switches
EDS
Parameter Object
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
