Bronkhorst Meter / Controller

Distinctive CIP Services
Product Category
Sensors Process
Device Profile
Mass Flow Controller: 0x1A

Saved to Favorites

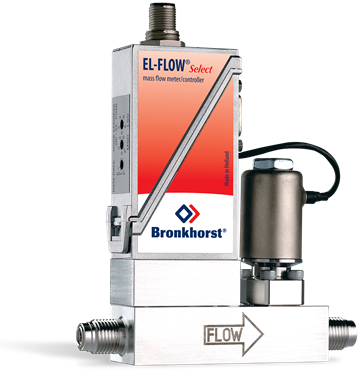

F 201cm

The DeviceNet™ interface was developed in accordance with SEMI E54, the standard for sensors and actuators. ODVA, the organisation that supports network technologies built on the Common Industrial Protocol, has found the Bronkhorst® Mass Flow Controller to be in compliance with the DeviceNet™ Specification, having passed ODVA's conformance testing at one of its authorized conformance test service providers at Composite Test Level 18.

Features include:
  • Baud rates from 125 kBaud up to 500 kBaud
  • +24 Vdc power supply required
  • powering through M12 micro style DeviceNet™ connector or via extra 9-pin sub-D connector possible
  • optional galvanic isolation up to 500 V (for data lines)
  • connection of max. 64 instruments to 1 bus
  • max. bus length: 500 metres at 125 kBaud, 100 metres at 500 kBaud

+31 57 345 8800
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10105 Year: 2012

Eds icon   Download the EDS File
Explicit Peer-to-Peer
I/O Peer-to-Peer
Other Settings
Quick Connect
Master Scanner
Faulted Node Recovery
Configuration Consistency Value
Baud Rates
I/O Slave Messaging
Bit Strobe
Change of State
Device Configuration
Hardware Switches
Parameter Object
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
