TR C-Series Encoder

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Sensors Process
Device Profile
Encoder: 0x22

Saved to Favorites



Tr c series encoder

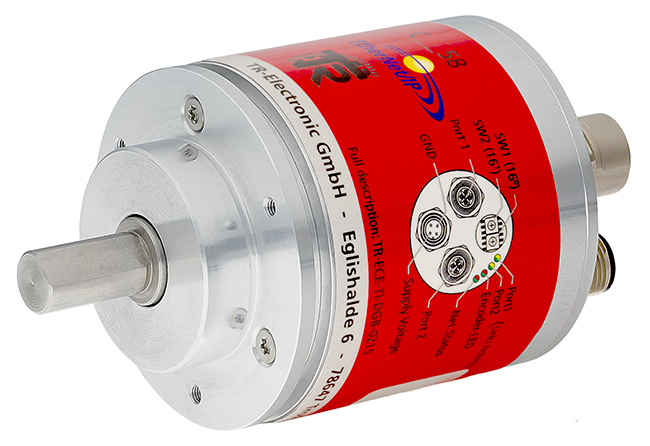

The Absolute Rotary Encoder is designed for operation in 100Base-TX Fast Ethernet networks with max. 100 Mbit/s, specified in ISO/IEC 8802-3. Communication via EtherNet/IP occurs in accordance with IEC 61158 et seqq., Type 2 and IEC 61784-1, CP 2/2 Type 2. The device profile corresponds to the "Encoder Device Profile 0x22" of the ODVA EtherNet/IP specification.

Product Features:

  • Supply voltage: 11-27 V DC
  • Working temperature: -20 – +70 °C
  • Protection class: IP 65
  • Shaft types: solid, hollow, blind, coupling
  • Total resolution: max. 36 bit
  • Number of steps / revolution: max. 262.144
  • Number of revolutions: max. 256.000

Programming of the following parameters via EtherNet/IP:
  • Counting direction
  • Number of revolutions
  • Total measuring length in steps
  • Preset value
  • IP Parameters
