CIP Safety HarshIO

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Safety
Product Category
I/O
Device Profile
Safety Discrete I/O: 0x23

Saved to Favorites

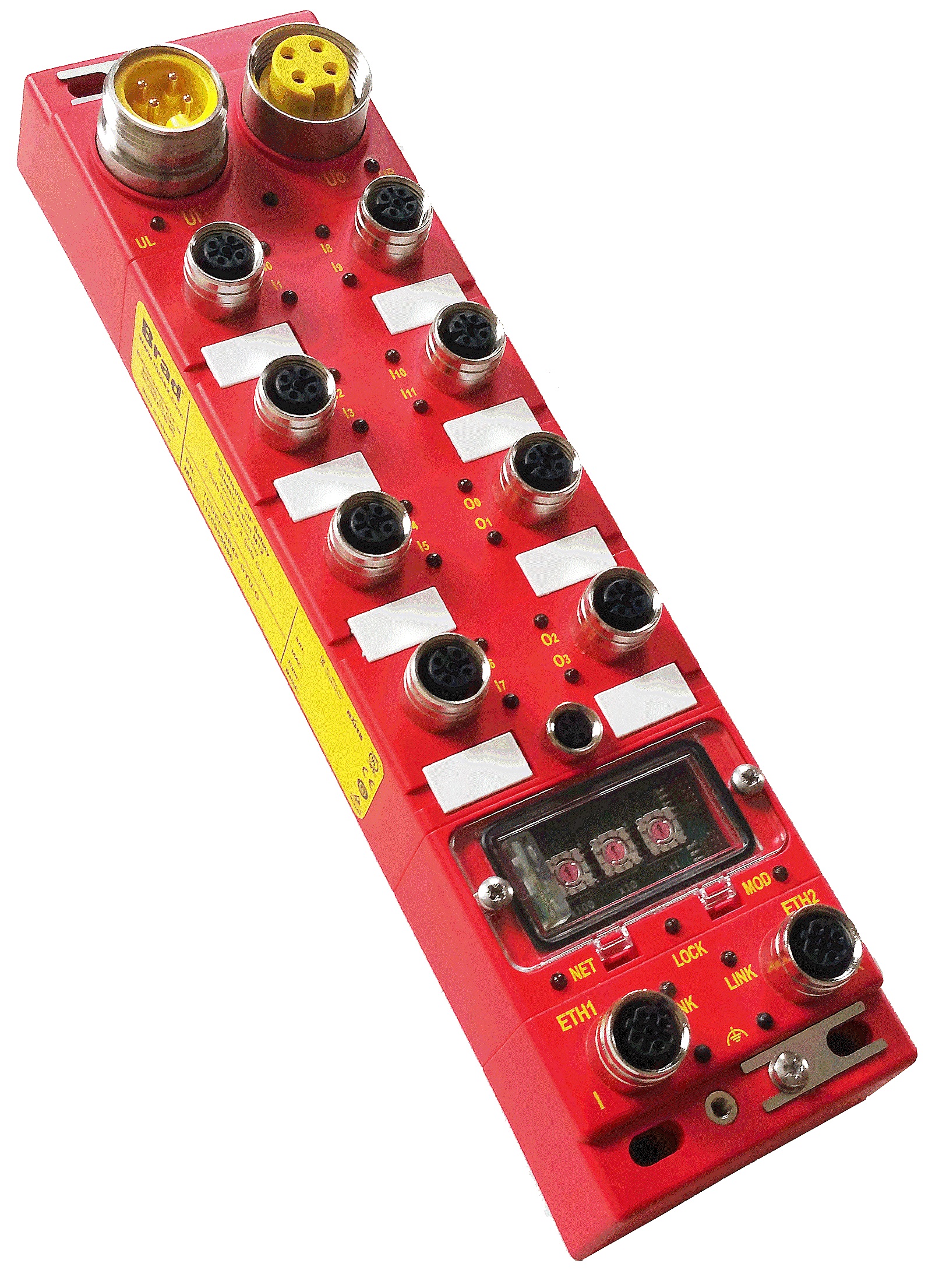

Harshioethernetipcipsafety highres21

The HarshIO modules are designed for use in safety applications. It communicates on EtherNet/IP using the CIP Safety protocol with sensors and actuators like: emergency stop, light curtain, area scanner, muting lamp… The combination of EtherNet/IP and CIP safety protocols allow exchanging safety and standard control data and diagnostics information over a single Ethernet network. The compact footprint offers 12 safe inputs and 4 safe outputs.

This combination is ideal for automotive applications running robots into cells. The on-board memory key allows the module replacement in a minute without any special tool or re-commissioning.

Advanced features such as built-in 2-port Ethernet switch with DLR, diagnostic leds, and a flexible IP address-setup method make configuration and operation simple. Using the patented Ultra-Lock™ push-to-lock connection system, standard M12 connectors from sensing devices or actuators plug directly into the I/O module creating an IP67 environmentally sealed, Ethernet connection.

Phone
+33-6 20 55 30 45
Email
Website
www.molex.com/link/ipcipsafety.html
Odva conformant large
Conformant cip safety

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11415 Year: 2022

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 17
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 9
Explicit Messaging: Target 8
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
