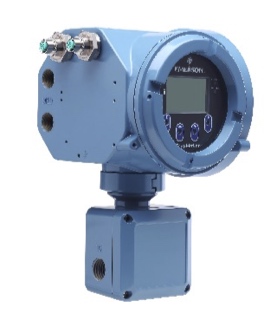

Delivering the best in measurement technology and unparalleled support, the 5700 transmitter's intuitive design ensures measurement confidence, valuable process insight and productivity through simplified solutions. Data historian feature captures rich information about process events, fluid quality, and measurement stability - over long and short periods of time. Zero Verification tool provides confidence in the meter zero and analyzes process conditions to indicate potential issues for re-zeroing.

Specifications:

 Ethernet Version:

• Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET all in one device
• Additional channel included configurable to mA output, pulse output, discrete output, or discrete input
• Pre-installed M12 quick connections available as an option

 Local display:

• Graphical backlit display
• Four-button optical controls
• Flowmeter-status LED
• Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages.

 Power:

• Self-switching AC/DC input, automatically recognizes supply voltage
• 85 to 2405 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
• 18 to 100 VDC, 6 watts typical, 11 watts maximum
• Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2

To learn more, select the website link below:

Website

www.emerson.com/en-us/catalog/automation-solutio...

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Download the Declaration of Conformity DOC Number: 11283 Year: 2022

Download the EDS File
