CTEU-EP Pneumatic Installation System for Valves and Controls

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Communications Adapter
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

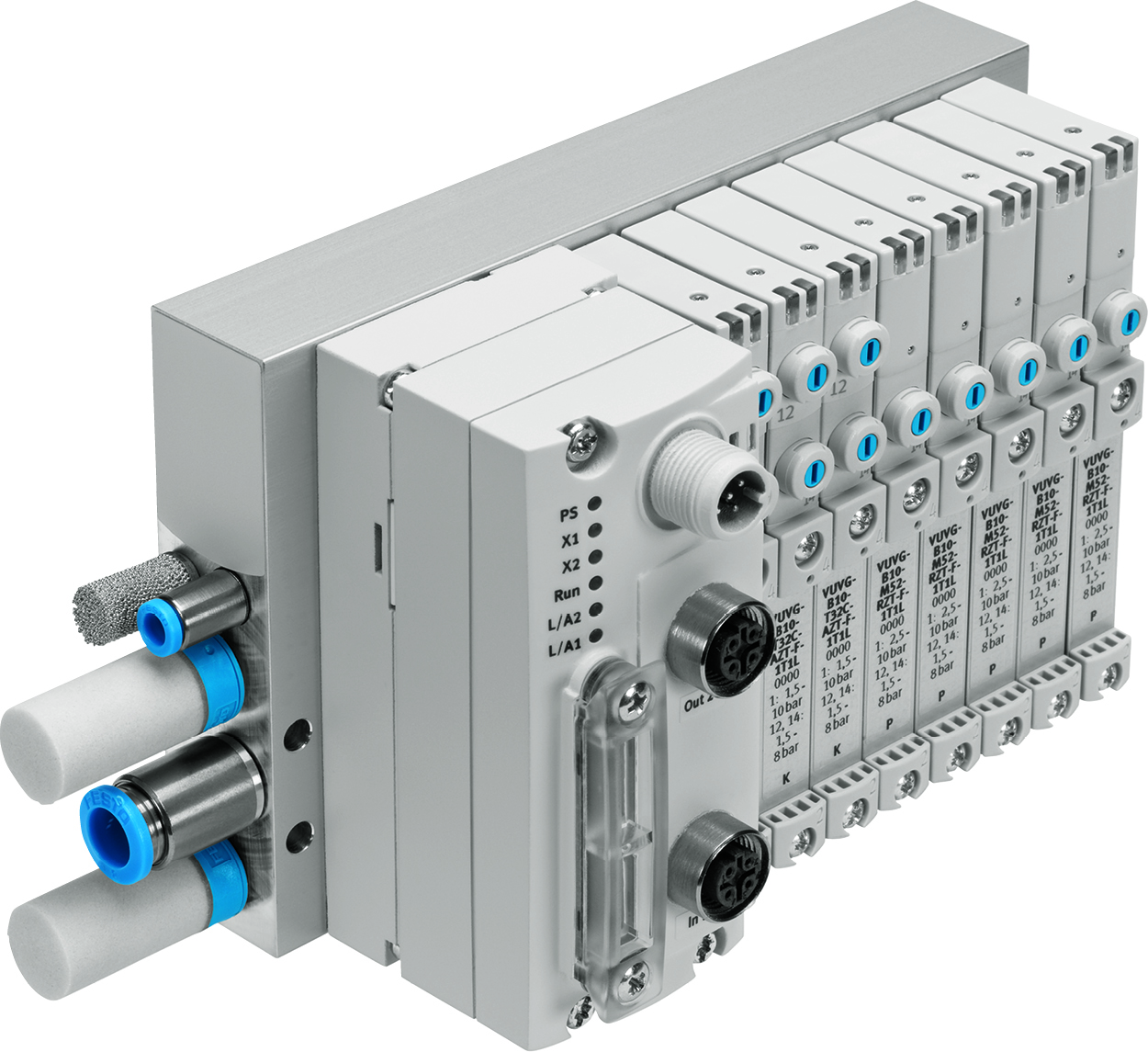

Cteu 16035u 40 300px

The CTEU-EP universal interface module makes EtherNet/IP connectivity low cost and plug and play for an extensive range of economical Festo valve terminals. The CTEU node can plug directly on top of most Festo I-Port valve terminals, or, when combined with a CAPC splitter, act as a gateway to IO-Link devices.

CTEU-EP lowers inventory requirements – a single part number covers multiple configurations – and, with an adapter, a single CTEU-EP can interface two valve terminals for even more efficiency and savings.

Valve terminals include VTUG, VTUB, MPA-L, VTOC, and CPV. In harsh environment applications, CTEU can interface to the MPA-C IP69K rated valve terminal. CTEU-EP is also compatible with other Festo I-Port enabled products such as the CTSL input module, SDAT cylinder position transmitter, OVEM vacuum generator, VPPM pressure regulator, CMMO-LK stepper motor controller, and to a number of pressure sensors. IO-Link relies on standard single pin M12 male and female connectors, which eliminate the installation complexity and cost associated with multi-pin connectors.

Specifications:

  • EtherNet/IP with 2 ports and DLR
  • Performance down to 1ms RPI
  • Up to 64 bytes In / 64 bytes Out
  • IP65/67, UL, CE
  • Includes IO-Link controller

Phone
+ 1 800 993 3786
Email
Website
www.festo.com
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11491 Year: 2016

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 32
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 1
Explicit Messaging: Target 31
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
