CPX-FB36 with MPA and VTSA Valve Families

Distinctive CIP Services
Product Category
Communications Adapter
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

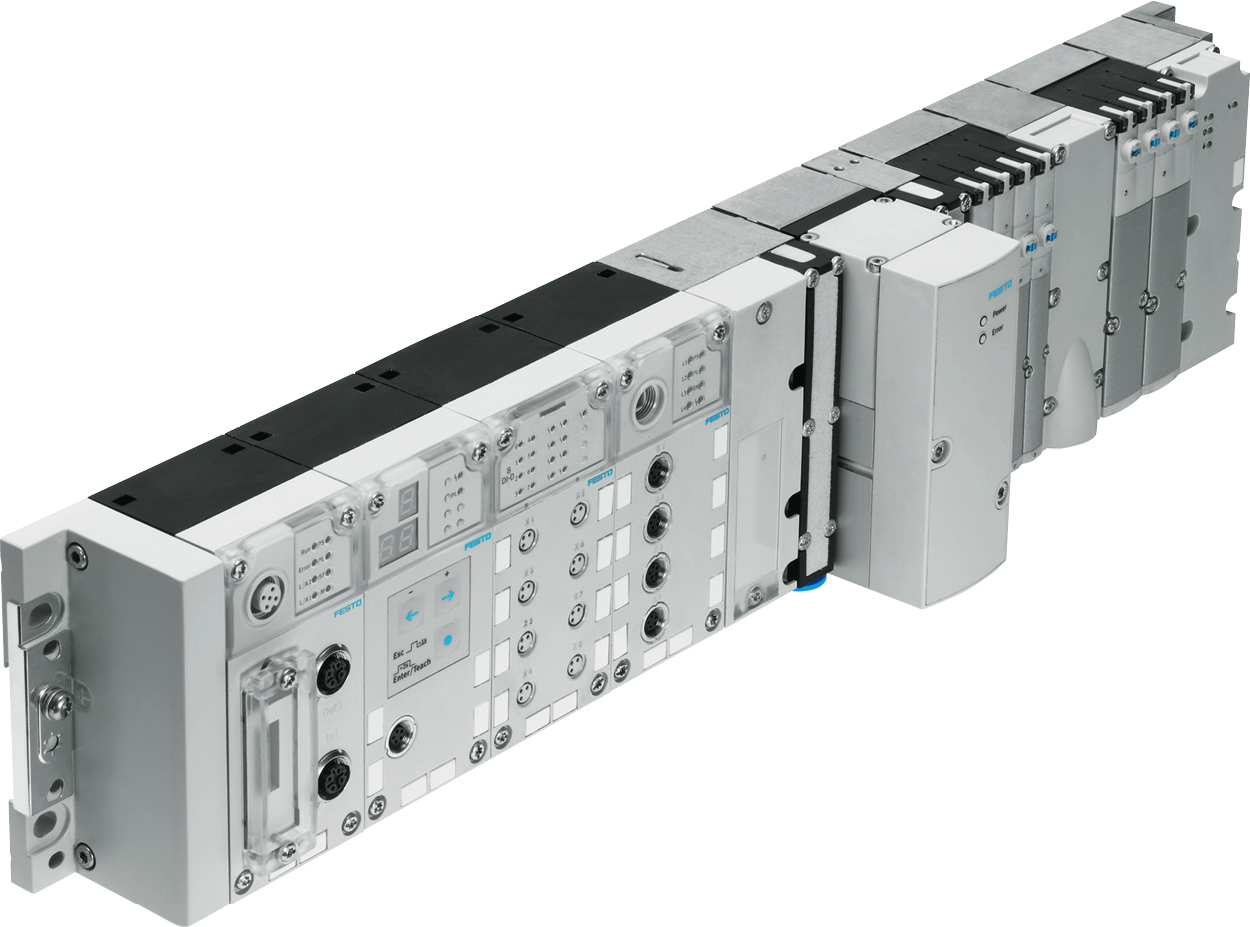

Cpx fb36 12499  300px

The CPX-FB36 is a communication adapter which fits in a cost effective and flexible electrical I/O terminal which can be combined with valve manifolds. It has a maximum capacity of 512 I/O.

Together with the highly modular valve terminals MPA or VTSA, an optimal synthesis of pneumatics and electrics are possible. Both valve families can mix different valve sizes and support all usual valve functions. The MPA system can be expanded to a maximum number of 64 valve positions and up to 128 valve coils. In addition, proportional valves, pressure sensors modules and power separations can be integrated inside the MPA platform. The VTSA family supports flow rates of 550 to 4000 l/m and complies to the ISO 15407-2 and ISO 5599-2 standards.

Features Include:

  • Versatile connection scheme in high protection rate
  • Variable power supply capability
  • Easily-serviced electronic I/O for analogue and digital signals
  • Function integration of pneumatic and electronic drive technologies
  • Combination with decentral valve – and I/O modules
  • Complete diagnostics for fast error detection
  • Remote access via Ethernet for diagnostics and configuration

+1 800 993 3786
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11182 Year: 2016

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 32
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 1
Explicit Messaging: Target 31
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
