Cisco Industrial Ethernet 4010 Series Switches

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Communications Bridges and Gateways
Device Profile
Managed Ethernet Switch 0x2C

Saved to Favorites

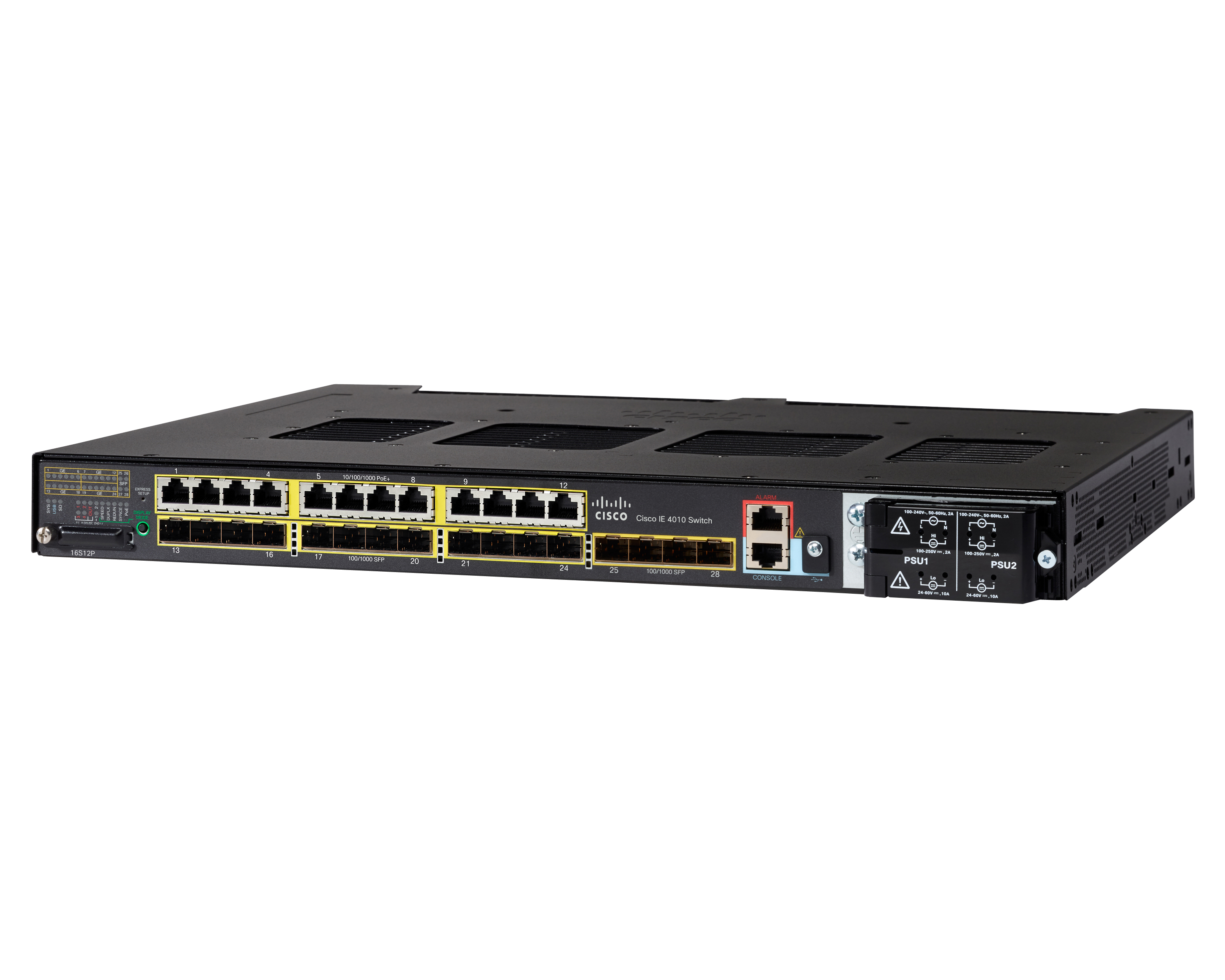

Kr22998  ie4010 01

The 4010 Series switches are built to withstand extreme environments while adhering to overall IT network design, compliance, and performance requirements. They deliver highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP), and support industrial protocols.

The 4010 series is ideal for industrial Ethernet vertical industries applications where hardened products are required. That includes Factory automation, Power utility substations, Intelligent transportation systems (ITS), Oil and gas field sites and City surveillance programs.

With improved overall performance, a more comprehensive feature set, and enhanced hardware, 4010 Series switches offer:

  • Superior bandwidth and capacity – 56-Gbps non-blocking switching capacity with 28-Gigabit-Ethernet (GE) ports
  • High-density, industrial Power over Ethernet (PoE) or PoE Plus (PoE+) support for in-line power to up to 24 devices
  • Robust resiliency enabled by a dual-ring design with 4x Gigabit Ethernet uplink ports, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), EtherChannel, and Flex Links support
  • A range of features that increase secure access to the network and enforce security policies, including flexible authentication with robust identity-based network services; highly secure connectivity and access control as well as Cisco TrustSec and link-layer MACsec encryption to protect data traffic across the network
  • Cisco IOS Software features for smooth IT integration and policy consistency
  • Easy deployment, with zero-touch discovery using DHCP and an express setup with a swappable SD flash card
  • A simple software upgrade path with a universal software image

Website
www.cisco.com/go/ie4010
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11530 Year: 2016

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
