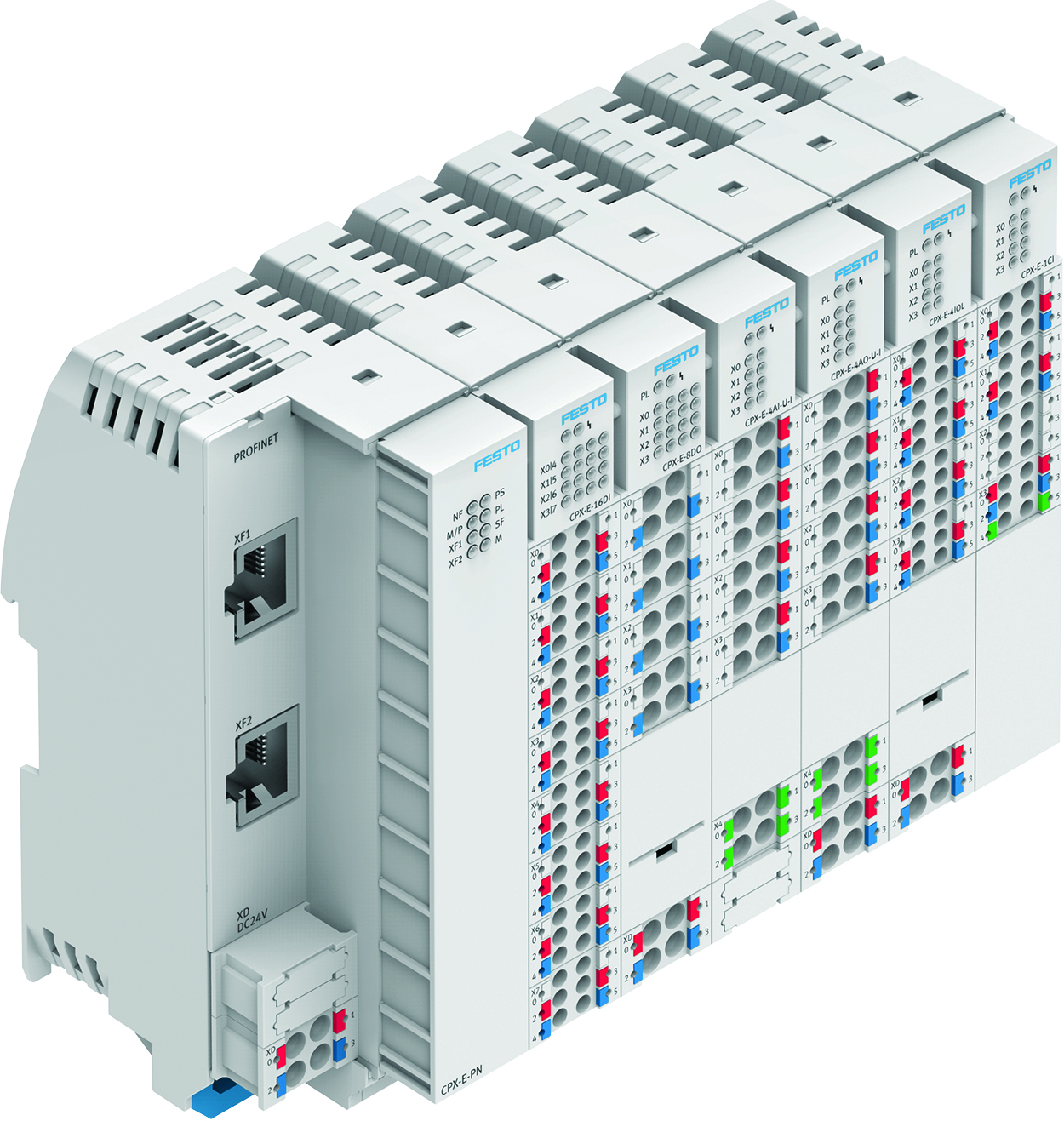

CPX-E-EP modular remote I/O terminals with EtherNet/IP fieldbus provide compact, low-cost control solutions for inside the control cabinet. It is an IP20, DIN rail mounted system. Easily incorporate digital I/O, IO-Link masters, analog I/O, and counter/encoder functionality into any application. Add the desired modules to the EtherNet/IP fieldbus module, up to 10 modules, 64 bytes of I/O data per EtherNet/IP module.
The system also works with the CPX-E-CEC-M1-EP motion controller, and communicate via EtherNet/IP fieldbus with a machine level PLC.
An ODVA Declaration of Conformity has been issued for the product(s) described on this page.
This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.
Download the Declaration of Conformity
DOC Number: 11634 Year: 2017 |
Download the EDS File
|
| Total CIP | 32 |
| Explicit Messaging: Originator | |
| I/O Messaging: Scanner | |
| I/O Messaging: Target (Adapter) | 1 |
| Explicit Messaging: Target | 31 |
| Hardware Switches | |
| EDS | |
| EDS File Instance in Device | |
| Parameter Objects | |
| Custom Software |
| 10 Mbps | |
| 100 Mbps | |
| Auto | |
| Manual |
| Half | |
| Full | |
| Auto | |
| Manual |
| Hardware Switches | |
| BootP | |
| DHCP | |
| Custom Software |
| Vendor Specific | |
| Safety Discrete I/O |
| EtherNet/IP | ID: 26 |
| DeviceNet | ID: 26 |
