ETHERLINE® & HITRONIC® Industrial Ethernet Connectors and Patch Cables

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Physical Layer Components Cable and Connectors

Saved to Favorites

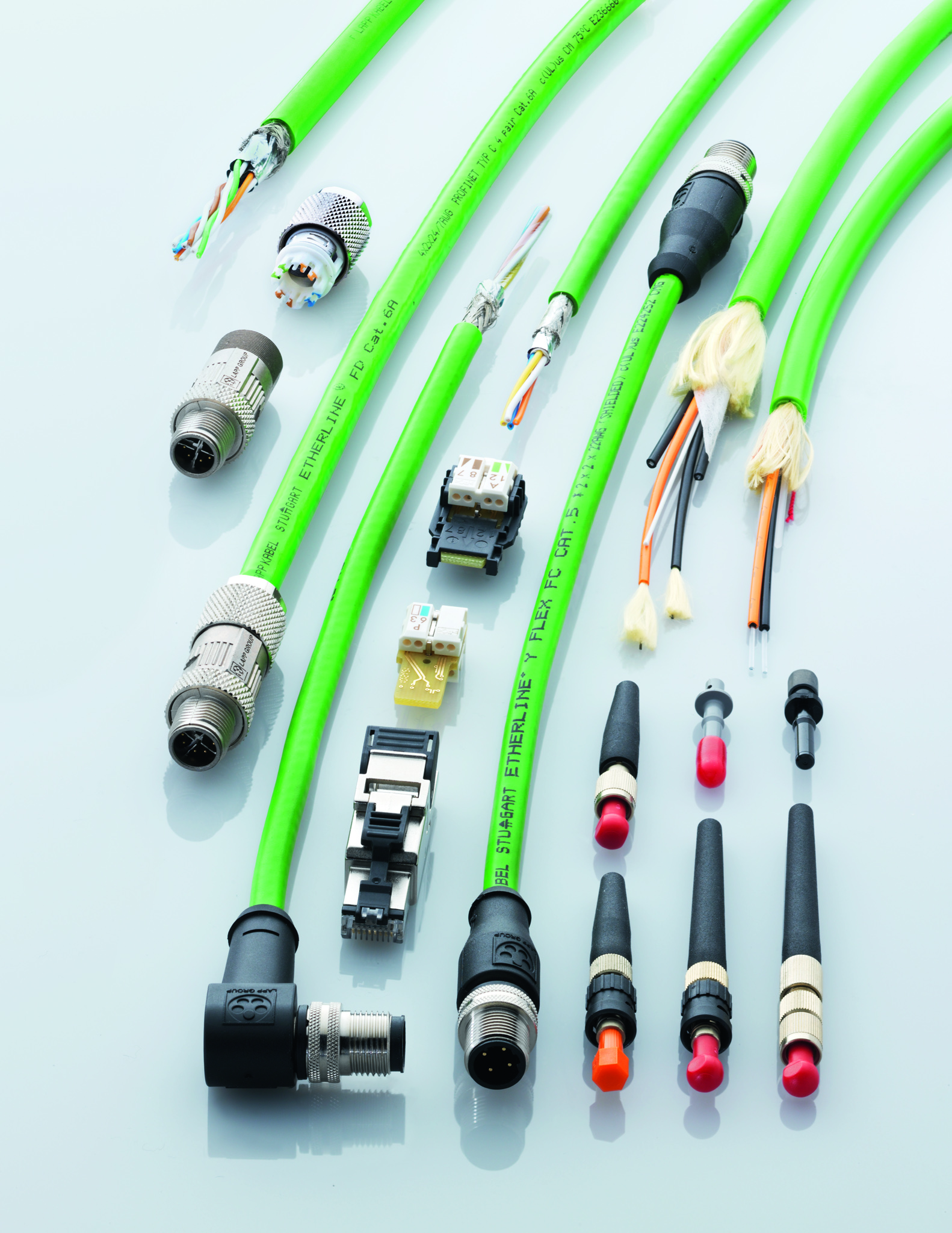

Profinet etherline f03 hochformat medium

You can rely on the comprehensive and high-quality cabling solutions by the Lapp Group to prevent failures, downtime and quality-related issues. Lapp takes care to offer products of individuality and costumer requirement as well as long time usability.

Our wide range of EtherNet/IP cabling solutions for all uses are subject to precision testing at our test centre and laboratory. The Lapp range features true all-rounders for particularly demanding requirements relating to a diverse application range, flexibility (as required in applications featuring highly dynamic flexing with permanent bending), chemical and mechanical resistance, and approvals. Offering copper connectors for field assembly, 4-core as well as 8-core patch cables, fibre optical connectors for field assembly and pre-assembled jumper cables, the Lapp Group has the right cabling solution for your EtherNet/IP application.

  • ETHERLINE® Cat.5e EC FD patch cables
    Cat. 5e patch cables for highly flexible installations, halogenfree PUR outer sheath, terminated with a M8 A-coded, M12 D-coded or RJ45 plug, 2x2x AWG26/19

  • ETHERLINE® Cat.5 PN patch cables
    Profinet Type A-compliant Cat. 5 patch cables for fixed installations, PVC outer sheath, terminated with a M12 D-coded or RJ45 plug, 2x2x AWG22/1

  • ETHERLINE® Cat.5 PN Flex patch cables
    Profinet Type B-compliant Cat. 5 patch cables for flexible installations, PVC outer sheath, terminated with a M12 D-coded or RJ45 plug, 2x2x AWG22/7

  • ETHERLINE® Cat.5 PN FD patch cables
    Profinet Type C-compliant Cat. 5 patch cables for highly flexible installations, halogenfree PUR outer sheath, terminated with a M12 D-coded or RJ45 plug, 2x2x AWG22/7

  • EPIC® DATA Cat. 6A M12X
    Field assembly Industrial Ethernet connector, plugs and sockets, providing protection up to IP67

  • GOF DUPLEX Patchcord
    Optical Duplex patch cords with various types of connectors (ST, LC, SC) available in single-mode or multi-mode fibre version

  • GOF connectors
    Connectors for glass fibre cables (ST, LC, SC, etc.) for single-mode and multi-mode fibres

  • POF connector SC-RJ
    SC-RJ connector as crimp version, suitable for POF cable types

Website
products.lappgroup.com/online-catalogue.html

Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
