microScan3 – EtherNet/IP™

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Safety
Product Category
Sensors Discrete
Device Profile
Vendor Specific: 0x

Saved to Favorites



Microscan3 im0070904

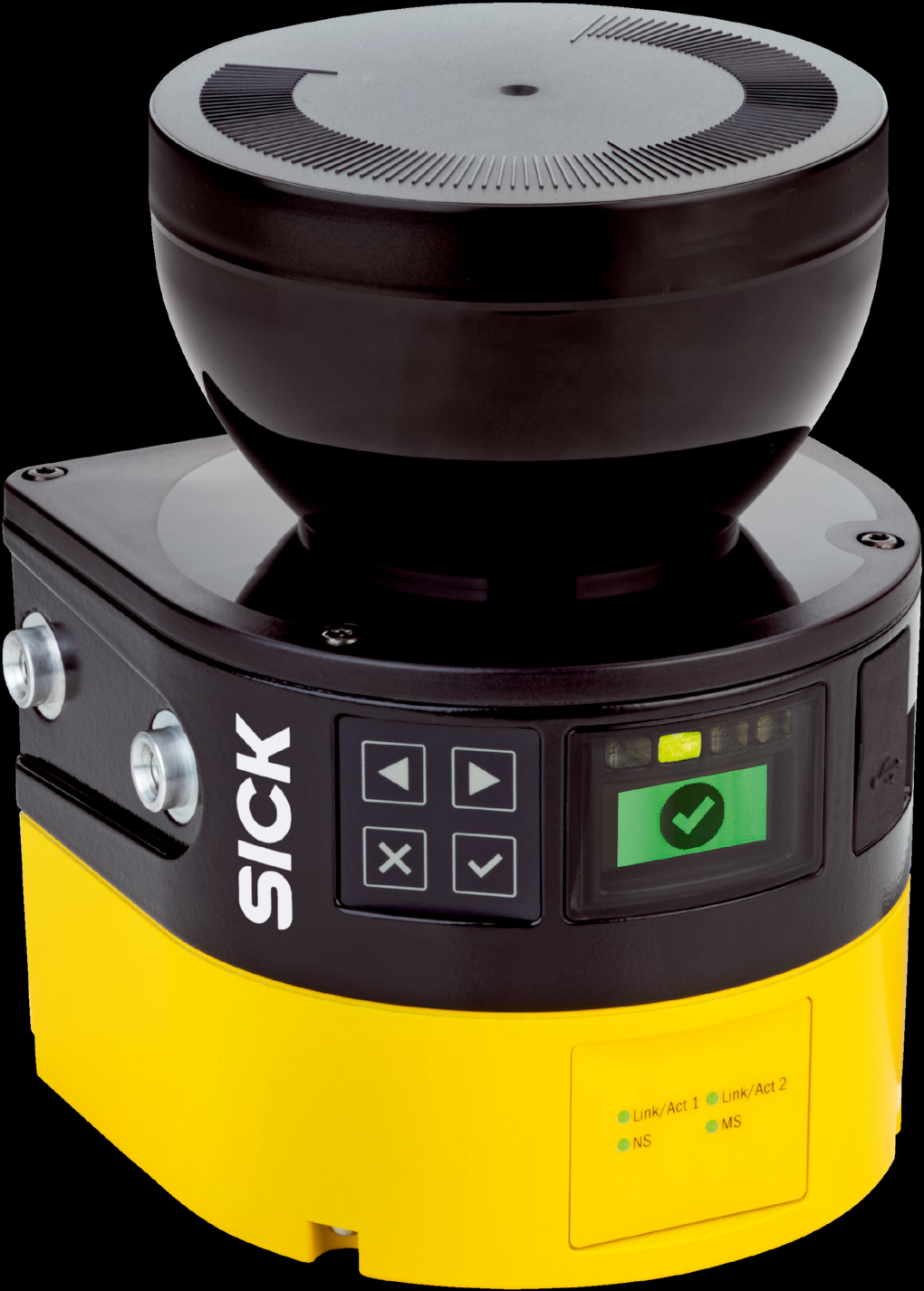

microScan3

  • safeHDDM®: innovative scanning technology for an outstanding ratio between wide scanning range and compact design
  • Rugged design: developed for harsh industrial day-to-day work
  • Intuitive operation: easy commissioning with the Safety Designer software and diagnostic options via the display, pushbuttons, or network
  • Smart connectivity: Safe integration via network with EtherNet/IP™ CIP Safety™ (also available via I/Os or via network with PROFINET PROFIsafe)
  • Protective field range 5.5 m; scanning angle 275°
  • Up to 128 freely configurable fields
  • Up to 8 simultaneous protective fields
  • System plug with configuration memory and M12 plug connectors
microScan3 – EtherNet/IP™: First safety laser scanner with CIP Safety™ over EtherNet/IP™

Excellent productivity, low purchase costs
  • Compatibility with current EtherNet/IP™ controls enables time-saving and safety-compliant integration into existing systems and reduces costs, since no additional control is needed
  • Convenient configuration via an access point in the network
  • Low maintenance requirements thanks to status diagnosis, either centrally via the control or remotely on the device display
  • Cost saving: Through 8 safe, independent shutdown signals, one microScan3 – EtherNet/IP™ does the job of up to 8 conventional I/O scanners
  • Fast cabling thanks to standardized M12 connectivity
Flexible and application-oriented
  • Adaptable to a wide range of situations via up to 128 freely configurable fields
  • Individual integration into fabric layout thanks to the integrated switch for star, line, and ring topologies (Device Level Ring)
  • Measurement data output via TCP/IP and UDP
Two variants available
  • Core: Basic version, perfectly suited for stationary applications with up to 4 simultaneous protective fields
  • Pro: Optimized for demanding robotic and mobile applications requiring high flexibility

Website
www.sick.com/microScan3
Odva conformant large
Conformant cip safety

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11599 Year: 2018

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 64
Explicit Messaging: Originator 0
I/O Messaging: Scanner 14
I/O Messaging: Target (Adapter) 50
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
bookmark Bookmark This Page

Member Gallery Listing From

174

Available ODVA Technology from this company

EtherNet/IP ID: 808
DeviceNet ID: 808
