Optoturn EAL580

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Sensors Process
Device Profile
Encoder: 0x22

Saved to Favorites



Optoturn eal580

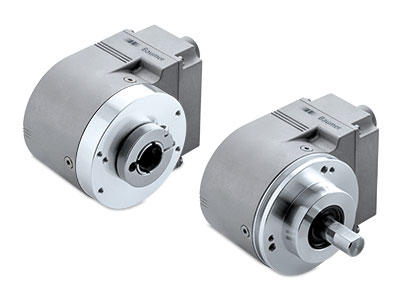

OptoTurn EAL580 - Absolute industrial encoder 58 mm optical

Unrivalled compact and space saving.
Ethernet encoder with small installation depth: a mere 47 mm.
Cost-efficient and lean cabling. The radial connector outlet allows the use of straight connectors and avoids tight and trouble-prone bending radius.
Easy integration at every spot. Through hollow shaft allows for direct integration into the drive train.
Increased plant availability through Device Level Ring (DLR) and Address Conflict Detection (ACD) avoids using duplicate IP Addresses. Quality of Service (QoS) reduces the variability in the delivery of message packets.

Technical highlights
  • Precise, optical sensing method
  • High absolute accuracy up to ±0,01°
  • Max. resolution: singleturn 18 bit, multiturn 16 bit
  • Wide temperature range –40...+85 °C
  • Operating speed ≤ 6000 U/min
  • Protection class up to IP 67

Phone
+49 6031 6007 0
Email
Website
www.baumer.com/de/en/contact
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11746 Year: 2018

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 9
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 3
Explicit Messaging: Target 6
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
bookmark Bookmark This Page

Member Gallery Listing From

Baumer ivo logo b e n r s

Available ODVA Technology from this company

EtherNet/IP ID: 468
DeviceNet ID: 468
