D-Series Laser Distance Sensor DX400

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Sensors Discrete
Device Profile
Generic Device: 0x2B

Saved to Favorites

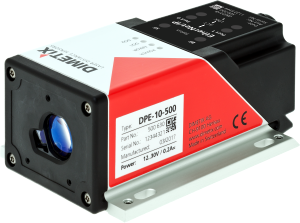

D series laserdistancesensor dx400 ethernetip

The D-Series Laser Distance Sensor DX400 are at the forefront of the continuous development and innovation at Dimetix AG. They measure long distances absolute and with the highest precision reliable and speed, even in the most difficult situations. The D-Series can measure on dark surfaces - even in exterior applications with solar irradiation. For more information see www.dimetix.com.

Key features:
  • Measurement range up to 500 m
  • Measuring accuracy ±1.0 mm @ 2σ (±0.5 mm @ 1σ)
  • High measurement speed (up to 250 Hz, 1 kHz output rate)
  • Compact design with integrated EtherNet/IP interface (2 port switch)
  • Simple integration and data structure of cyclic / acyclic data
  • Configuration possibilities of D-Series laser sensor with cyclic and acyclic protocol communication
  • Wide range of power supply (12...30 VDC)
  • Visible red laser, laser class II (<0.95 mW)
  • IP65 (protected against ingress of dust and water)
Applications:
Position measurement (Positioning, Anti-Collision, etc.), Monitoring (Statistic, Observation, etc.), Dimension measurement, Level measurement and many more.




Email
Website
www.dimetix.com
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11806 Year: 2018

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
