Digispense 4000

Distinctive CIP Services
Product Category
Controllers Hardware
Device Profile
Generic Device: 0x2B

Saved to Favorites

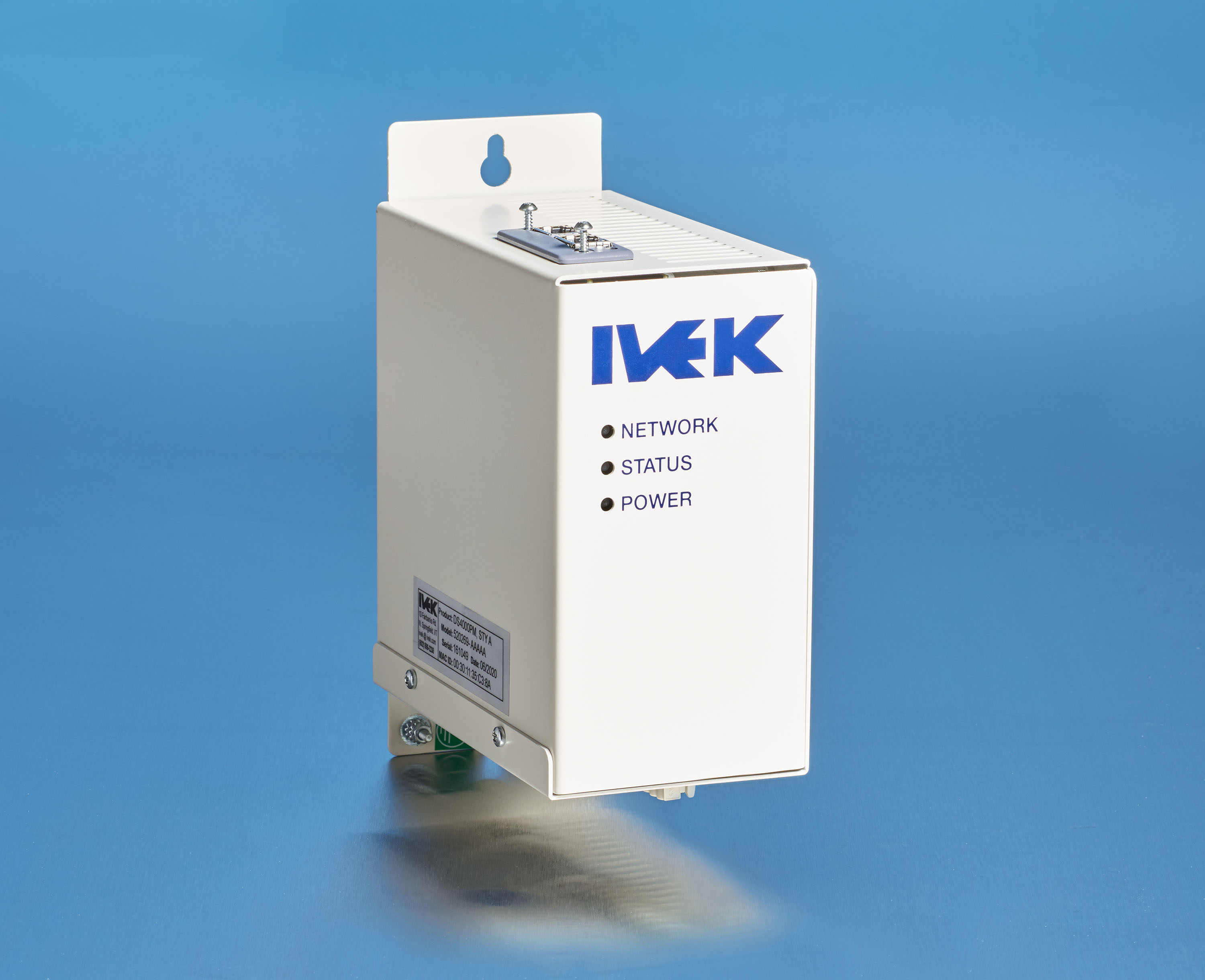

Digispense 4000pm controller

The DigiSpense® 4000 is IVEK’s latest, high-performance, production oriented, single-channel dispensing system combining both Rotary and Linear functionality into one package. The DigiSpense 4000 enables precise and repeatable fluid dispensing volumes at rates of 2nl per second to 300 mL per second. Dynamic microstepping technology significantly improves pump performance at low dispense rates. Production modes, including Dispense, Meter and Feeder, offer unique dispensing profiles for a wide range of applications. Fluidic Setup modes, including Prime, Agitate and Bubble Clear, prepare the fluid path for reliable, repeatable dispensing and reduced maintenance.

The DigiSpense® 4000’s panel mount compact footprint, along with minimal side-to-side clearances, allows multiple controllers to fit into a dedicated cabinet, or to be combined with other control equipment in an existing cabinet. Terminal block style connectors allow the cables to be passed through conduits during installation, while maintaining quick-disconnection. Two Ethernet ports enable the fieldbus to be wired in either a star or ring topology. Multi-color LEDs provide the user with local feedback of the status of the network, dispensing state, and power supply.

The DigiSpense® 4000 controller is simple to operate out of the box. Parameter configuration screens allow for easy creation of unique dispensing profiles. Improved integration to PLC control systems, facilitated by Ethernet fieldbus communication options and web browser services, reduces development time and cost.

Features & Benefits:

  • Production Modes: Dispense, Meter, Feeder
  • Fluidic Setup Modes: Prime, Agitate, Bubble Clear
  • Volume Units: nanoliters (nl), microliters (µl), milliliters (ml)
  • Configurable drawback to enhance fluidic sheering at tip
  • Compact footprint for mounting multiple controllers into a cabinet
  • Flexible 24-48VDC input power, filtered and reverse polarity protected
  • Multi-color LEDs for quick identification of status
  • Recipe storage of up to 32 dispensing profiles
  • Password protected permission levels to limit operator access to dispensing profile
  • CE Conformance
  • One Year Warranty

+1 802 886 2238
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11848 Year: 2023

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
