GFX4-GFXTERMO4

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Controllers Temperature
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

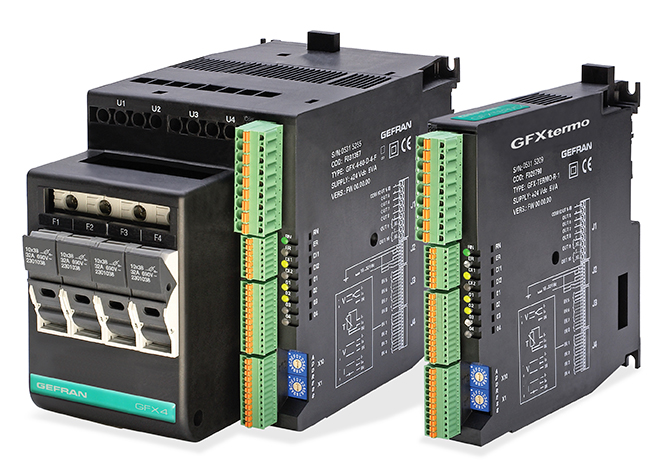

Gfx4gfxtermo4

Four Zone Integrated PID Temperature Controller & Power Controller for Linear Resistive Load

Main features
A compact solution with 4 precise PID temperature controllers (mod. GFXTERMO4) and 4 integrated Power controllers for resistive loads (mod. GFX4). Four universal main inputs Tc/PT100/mA/V with 80ms sampling time and advance diagnostics with Loop Break Alarm detections.

Unit consisting of:
  • 4 universal main inputs
  • 4 heat/cool independent PID
  • 4 main output internally wired to the SSR
  • 4 auxiliary analog inputs (option)
  • 4 configurable output (option): relay / logic / TRIAC / continuous
  • 2 configurable relay alarm output
  • Power 30, 60, 80kW solid state relay (mod. GFX4)
  • Current transformers
  • Fuses-holder (mod. GFX4)
  • 2 digital inputs
  • Standard digital communication: Modbus RTU
  • DIN rail or panel mounting
Main application:
  • Thermoforming
  • Extrusion
  • Plastic injection
  • Packaging
  • Textile
  • Hot runners

Phone
+39 030 98881
Email
Website
www.gefran.com/en/products/196-gfx4-power-contro...
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11837 Year: 2019

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 3
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
