GFX4-IR option E8 (CT15)

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Controllers Temperature
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

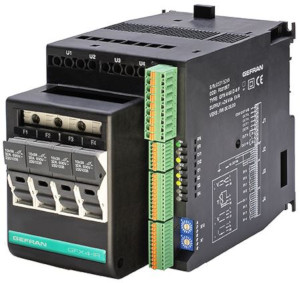

Gfx4 ir

FOUR ZONE MODULAR POWER CONTROLLER FOR SWIR LAMPS, RESISTIVE LOAD AND TRANSFORMER PRIMARY

Stand-alone unit for independent control of four electrical power control loops. Extremely compact, with independent controls and advanced diagnostics. Used to control power for single-phase and 3-phase loads, including high and low temperature coefficient resistive loads, short wave infrared lamps (SWIR) and transformer primaries.

Main features
  • Power 30, 60, 80kW solid state relay
  • Current transformers
  • Fuses-holder (option)
  • 4 universal main inputs
  • 4 heat/cool independent PID
  • 4 main output internally wired to the SSR
  • 4 auxiliary analog inputs (option)
  • 4 configurable output (option): relay / logic / TRIAC / continuous
  • 2 configurable relay alarm output
  • 2 digital inputs
  • Standard digital communication: Modbus RTU
  • DIN rail or panel mounting
Main application
  • Thermoforming
  • Blowing
  • Fiber weaving
  • Heat treatment furnaces
  • Wood-working machines
  • Glass hardening furnaces

Email
Website
www.gefran.com/en/products/272-gfx4ir-power-cont...
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11836 Year: 2019

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 3
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
