GPC 40-600A

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Controllers Temperature
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

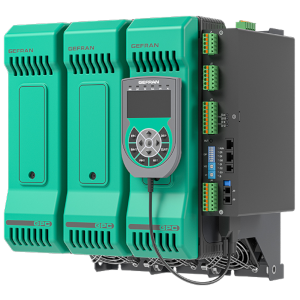

Gpc 300x300

ELECTRIC HEATERS POWER CONTROLLER 400A…600A SINGLE/TWO/THREE LEGS MODEL

Main features

The GPC electric power controller series was designed to meet the requirements of the industrial electric heating applications with linear and non-linear resistive loads including Silicon carbide (SiC), Silicon-Molybdenum (MoSi2), Graphite, SWIR lamps and single/two/three-phase transformers, with voltage ranging between 90 Vac to 690 Vac.

Heaters firing mode is fully configurable with:
ZC: Zero crossing with constant cycle time for conventional linear loads
BF: Burst-Firing, fast Zero crossing with minimum optimized cycle time for systems with low heat inertia
HSC: Half-Single-Cycle, which corresponds to a Burst Firing managing also single semi-waves. Therefore, it is ideal for short wave IR lamps:  it reduces flickering and limits the generation of EMC disturbance in the power line.
PA: Phase angle control, ideal to fully remove flickering on short-wave IR lamps, accurately check power checks, correctly manage Silicon Carbide (SiC) and Silicon Molybdenum (MoSi2) non-linear resistors, and transformers’ primary windings

Unit consisting of:

  • Current range from 40A to 600A
  • Configurations: Single-phase, two-phase, and three-phase
  • Voltage range 480Vac, 600Vac or 690Vac
  • Firing mode configurable “Zero crossing” (Fixed Cycle, Burst Firing, Half Single Cycle) or “Phase angle”
  • Analogue inputs: Volt, mA, potentiometer, and digital (PWM)
  • Inputs for three external CTs
  • Three configurable retransmission analogue outputs (V/mA)
  • Built-in fuse (opt)
  • Interrupted total and partial load alarm (opt)
  • Current limit (opt)
  • Feedback V, V2, I, I2, P (opt)
  • Wide range of standard communication fieldbus
  • SCCR UL 508 100KA

Main application

  • Metal Heat Treat
  • Glass
  • Oil & Gas
  • Ceramics and precious metals
  • Semiconductor
  • Chemical
  • Energy



Phone
33 09 8881
Email
Website
www.gefran.com/en/products/630-gpc-single-two-th...
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11870 Year: 2021

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 4
Explicit Messaging: Originator
I/O Messaging: Scanner 3
I/O Messaging: Target (Adapter) 6
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
