BELDEN has brought together a comprehensive line of industrial cabling and connectivity products, offering the most reliable communications solutions for your application.

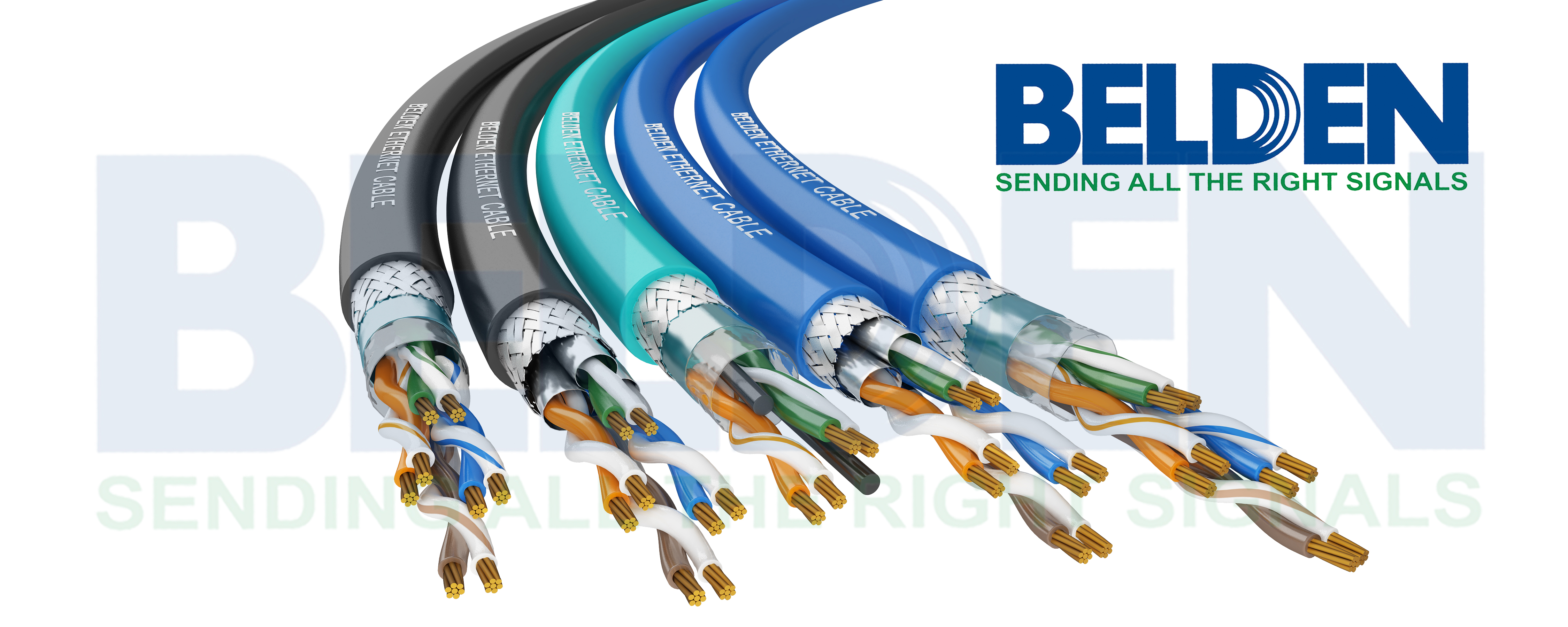

BELDEN EtherNet/IP CAT5e & CAT6A Cables are designed to deliver the highest level of quality, consistency and performance possible in the industrial environment to ensure maximum uptime and productivity. These cables come in both 4-pair and 2-pair designs with solid or stranded conductors as per the application type and have multiple jacket options like PVC, Special PUR based, LSZH to address all your requirements. They also have overall braid shielding with high coverage. These cables are also RoHS & TIA/EIA-568 compliant. The cables for flexible application can pass ≥ 1 million drag chain cycles (PVC Jacket) and ≥ 2 million drag chain cycles (PUR Jacket).
EtherNet/IP Compliant Cat5e Cables for flexible application
Belden Cable – 9054 (CAT5e SF/UTP)
Industrial Ethernet Cat5e cable – 2 pair
Design: 2X2XAWG24/7 SF/UTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: PVC Jacket
Jacket Color: Teal RAL 5021
Reference Standards: TIA-568, UL AWM Style 2095
Flame Retardancy: IEC 60332-1, FT2
Drag Chain Test: Min. 1 Million cycles
Voltage Rating: 300V
Operating temperature: -20°C to 80°C
Belden Cable – 6025 (CAT5e SF/UTP)
Industrial Ethernet Cat5e cable – 2 pair
Design: 2X2XAWG24/7 SF/UTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: Special compound Polyurethane based (UL 758 & UL 1581)
Jacket Color: Teal RAL 5021
Reference Standards: TIA-568, UL AWM Style 22260
Flame Retardancy: IEC 60332-1, FT2
Drag Chain Test: Min. 2 Million cycles
Voltage Rating: 300V
Operating temperature: -20°C to 80°C
EtherNet/IP Compliant Cat5e Cables for fixed installation
Belden Cable – 9055 (CAT5e SF/UTP)
Industrial Ethernet Cat5e cable – 4 pair
Design 4X2XAWG24/1 SF/UTP
Conductor: Solid Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: PVC jacket
Jacket Color: Blue
Reference Standards: TIA-568, UL AWM Style 20276
Flame Retardancy: IEC 60332-1, VW-1
Voltage Rating: 30V
Operating temperature: -20°C to 80°C
Belden Cable – 6014 (CAT5e S/FTP)
Industrial Ethernet Cat5e cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: LSZH jacket (Oil Resistant)
Reference Standards: IEC/ISO 11801, UL AWM Style 21100
Flame Retardancy: FT2, IEC 60332‐1, IEC 60332‐3A
Voltage Rating: 30V
Conductor Resistance @ 20°C: 145 Ω/KM (Max.)
Operating temperature: -20°C to 80°C
Characteristic Impedance: 100 Ω (Nom.)
Belden Cable – 6016 (CAT5e S/FTP)
Industrial Ethernet Cat5e cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: PVC jacket (Oil Resistant)
Reference Standards: IEC/ISO 11801, UL AWM Style 20276
Flame Retardancy: IEC 60332‐1, FT2, IEC 60332‐3A
Voltage Rating: 30V
Conductor Resistance @ 20°C: 145 Ω/KM (Max.)
Operating temperature: -20°C to 80°C
Characteristic Impedance: 100 Ω (Nom.)
Belden Cable – 6038 (CAT5e S/FTP)
Industrial Ethernet Cat5e cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: Special compound Polyurethane based (UL 758 & UL 1581) UV Resistant Jacket
Reference Standards: IEC/ISO 11801, UL AWM Style 22313
Flame Retardancy: IEC 60332‐1, FT2, IEC 60332‐3A
Voltage Rating: 30V
Conductor Resistance @ 20°C: 145 Ω/KM (Max.)
Operating temperature: -20°C to 80°C
Characteristic Impedance: 100 Ω (Nom.)
Belden Cable – 6039 (CAT5e S/FTP)
Industrial Ethernet Cat5e cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: TPE Jacket (UV Resistant)
Reference Standards: IEC/ISO 11801, UL AWM Style 20276
Flame Retardancy: IEC 60332‐1, FT2, IEC 60332‐3A
Voltage Rating: 30V
Conductor Resistance @ 20°C: 145 Ω/KM (Max.)
Operating temperature: -20°C to 80°C
Characteristic Impedance: 100 Ω (Nom.)
Belden Cable – 6614 (CAT5e SF/UTP)
Industrial Ethernet Cat5e cable – 2 pair
Design: 2X2XAWG26/7 SF/UTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: Special compound Polyurethane based (UL 758 & UL 1581)
Nominal diameter over insulation: 0.96 mm
Reference Standards: TIA-568, UL AWM Style 22260
Flame Retardancy: IEC 60332-1, FT2
Voltage Rating: 300V
Operating temperature: -20°C to 80°C
Belden Cable – 6615 (CAT5e SF/UTP)
Industrial Ethernet Cat5e cable – 2 pair
Design: 2X2XAWG26/7 SF/UTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: PVC jacket
Nominal diameter over insulation: 0.96 mm
Reference Standards: TIA-568, UL AWM Style 2095
Flame Retardancy: IEC 60332-1, FT2
Voltage Rating: 300V
Operating temperature: -20°C to 80°C
EtherNet/IP Compliant Cat6A Cables for fixed installation
Belden Cable – 6011 (CAT6A S/FTP)
Industrial Ethernet Cat6A cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: Individual AL/PET-Mylar Shield & Overall Tinned Copper Braid shield
Jacket: Special compound Polyurethane based (UL 758 & UL 1581)
Reference Standards: IEC/ISO 11801, UL AWM 22313
Flame Retardancy: IEC 60332-1, FT2
Voltage Rating: 30V
Operating temperature: -20°C to 80°C
Belden Cable – 6021 (CAT6A S/FTP)
Industrial Ethernet Cat6A cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: Individual AL/PET-Mylar Shield & Overall Tinned Copper Braid shield
Jacket: LSZH Jacket
Reference Standards: IEC/ISO 11801, UL AWM Style 21100
Flame Retardancy: IEC 60332-1, FT-2, IEC 60332‐3A
Voltage Rating: 30V
Operating temperature: -20°C to 80°C
Belden Cable – 6023 (CAT6A S/FTP)
Industrial Ethernet Cat6A cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: Individual AL/PET-Mylar Shield & Overall Tinned Copper Braid shield
Jacket: PVC Jacket
Reference Standards: IEC/ISO 11801, UL AWM 20276
Flame Retardancy: IEC 60332-1, FT-2, IEC 60332‐3A
Voltage Rating: 30V
Operating temperature: -20°C to 80°C
Belden Cable – 6012 (CAT6A S/FTP)
Industrial Ethernet Cat6A cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: Individual AL/PET-Mylar Shield & Overall Tinned Copper Braid shield
Jacket: PVC Jacket
Reference Standards: IEC/ISO 11801, UL AWM 20276
Flame Retardancy: IEC 60332-1, FT-2, IEC 60332‐3A
Voltage Rating: 30V
Operating temperature: -20°C to 80°C
Belden Cable – 6027 (CAT6A S/FTP)
Industrial Ethernet Cat6A cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: Special compound Polyurethane based (UL 758 & UL 1581) UV Resistant Jacket
Reference Standards: IEC/ISO 11801, UL AWM Style 22313
Flame Retardancy: IEC 60332‐1, FT2, IEC 60332‐3A
Voltage Rating: 30V
Conductor Resistance @ 20°C: 145 Ω/KM (Max.)
Operating temperature: -20°C to 80°C
Characteristic Impedance: 100 Ω (Nom.)
Belden Cable – 6028 (CAT6A S/FTP)
Industrial Ethernet Cat6A cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: TPE Jacket (UV Resistant)
Reference Standards: IEC/ISO 11801, UL AWM Style 20276
Flame Retardancy: IEC 60332‐1, FT2, IEC 60332‐3A
Voltage Rating: 30V
Conductor Resistance @ 20°C: 145 Ω/KM (Max.)
Operating temperature: -20°C to 80°C
Characteristic Impedance: 100 Ω (Nom.)
Belden Cable – 6029 (CAT6A S/FTP)
Industrial Ethernet Cat6A cable – 4 pair
Design: 4X2XAWG26/7 S/FTP
Conductor: Stranded Bare Copper
Shielding: AL/PET-Mylar & Tinned Copper Braid shield
Jacket: TPE Jacket (Oil Resistant)
Reference Standards: IEC/ISO 11801, UL AWM Style 20276
Flame Retardancy: IEC 60332‐1, FT2, IEC 60332‐3A
Voltage Rating: 30V
Conductor Resistance @ 20°C: 14.5 Ω/100M (Max.)
Operating temperature: -20°C to 75°C
Characteristic Impedance: 100 Ω (Nom.)
All Belden cables for EtherNet/IP are manufactured to ODVA specifications.
Full product specifications can be found at www.belden.com.
