ITV Electro-Pneumatic Regulator with Ethernet/IP™

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Actuators Pneumatic Valves
Device Profile
Generic Device: 0x2B

Saved to Favorites

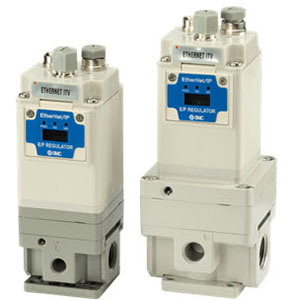

Smc itv ethernet

Series ITV is an electro-pneumatic regulator that controls air pressure with an electric signal. This EtherNet/IP version, designed and built in SMC's North American headquarters, now includes a 2nd generation chipset with new features and upgrades. The new design is CE and UL certified, while also meeting the ODVA specification. The IP address can now be set with a DIP switch. An integrated 2-port switch, Quick Connect, and Device Level Ring allow this ITV to operate in typical manufacturing network topologies. If the installation requires more than one regulator, the ITVs can be daisy chained. Power over Ethernet is available for up to 5 units. The new dynamic web page design includes pressure settings and feedback in engineering units. Gain and sensitivity can also be adjusted. Expanded fault diagnostics and alarm enable quicker troubleshooting for reduced downtime. In the event of a lost connection, the regulator holds the set point pressure to maintain the machine's operation.

  • Power supply voltage: 24 VDC ± 10%
  • Connector: 4-pin M12
  • I/O signal: 12 bit resolution
  • Linearity: ± 1% F.S.
  • Hysteresis: ± 0.5% F.S.
  • Repeatability: ± 0.5% F.S.
  • Sensitivity: ±0.2% F.S.
  • Enclosure rating: IP65

Phone
+1 800 762 7621
Email
Website
www.smcusa.com/products/ITV-Electro-Pneumatic-Re...
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 12061 Year: 2020

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 3
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
