CD_582 Functional Safe Absolute Rotary Encoder CIP Safety EtherNet/IP

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Safety
Product Category
Sensors Process
Device Profile
Encoder: 0x22

Saved to Favorites



Cd 582fs eip v und h version sm odva

CD_582+FS EtherNet/IP

  • SIL3 / SIL 2 – EtherNet/IP CIP Safety rotary encoder in industrial standard size 58mm
  • Redundant layout (KAT4): two fully independent multiturn absolute encoders in the size of a single one
  • Incremental output as an option (HTL, TTL, sincos)
  • EtherNet/IP Protocoll (Encoder-Object, DHCP, Programmable software gear, speed signal)
  • CIPsafety Protokoll (speed signal, programmable software gear, preset adjustment)

Absolute rotary encoder in standard dimensions of 58mm holds a true absolute multi-turn double rotary encoder system with integrated safety evaluation. Secured position data (“Safe Position” – SLP) are transmitted via secured bus system to the safety controller (CIP Safety protocol via EtherNet/IP). Depending on safety requirement of the specific applications, CD_582+FS fulfil maximum safety standard SIL3, PLe. They are available as well in an optimized version to meet SIL2, PLd requirements.

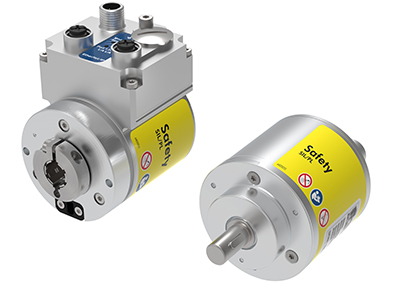

Available as CDV582 (solid shaft), CDH582 (hollow shaft) and CDS (blind shaft) type.



Phone
+49 74252280
Email
Website
www.tr-electronic.de/s/S022664
Odva conformant large
Conformant cip safety

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 12025 Year: 2020

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 7
Explicit Messaging: Originator 1
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target 1
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O


bookmark Bookmark This Page

Member Gallery Listing From

177

ODVA Technologies Licensed to this Company

EtherNet/IP ID: 1137
DeviceNet ID: 1137
