CMMT-AS/ST Motor Drives

Distinctive CIP Services
Product Category
Motor Control AC Drives
Device Profile
Generic Device: 0x2B

Saved to Favorites

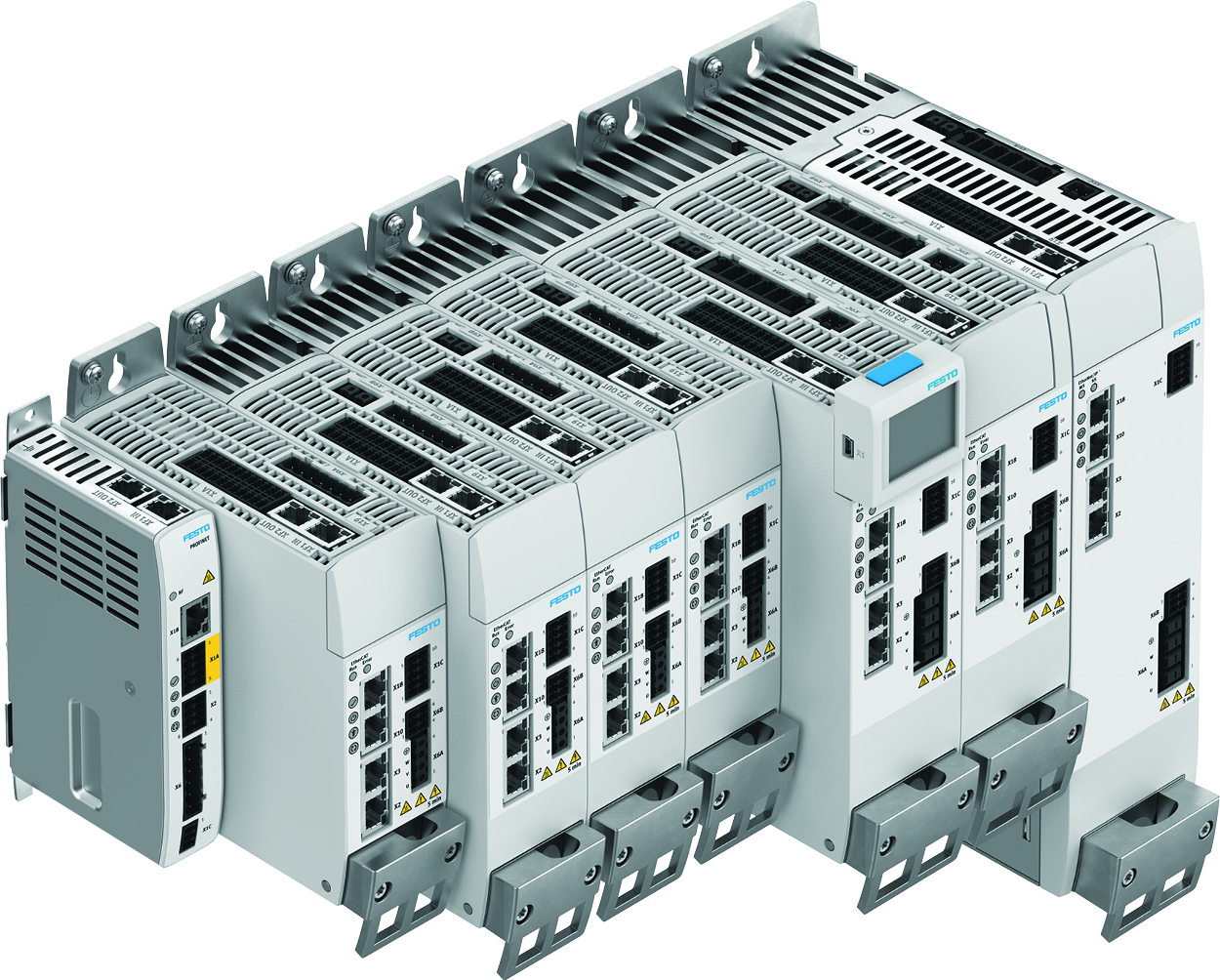

Cmmt 27703uc 1 300px

CMMT servo drives are easy to incorporate into EtherNet/IP fieldbus networks. The integrated Ethernet switch means they can be daisy-chained together in a line topology or used with DLR in a ring topology.

CMMT servo drives are available in a wide range of power classes to support the vast majority of industrial applications. With the compact BLDC servo drives CMMT-ST, applications can be run at 24 V DC or with twice the speed at 48 V DC. For more dynamic applications, the AC servo drives CMMT-AS can be used in applications from 350 W to 6,000 W.

And all CMMT servo drives support positioning, speed, and torque control. Sophisticated motion profiles can be preconfigured in the servo drive or sent directly to the servo drive from the PLC.

+1 800 993 3786
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11965 Year: 2023

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 13
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 5
Explicit Messaging: Target 8
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O

bookmark Bookmark This Page

Member Gallery Listing From

Festo logo

ODVA Technologies Licensed to this Company

EtherNet/IP ID: 26
DeviceNet ID: 26
