CPX-AP-I/A Distributed/Modular I/O System for Valves and Controls

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Sync
Product Category
Communications Adapter
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

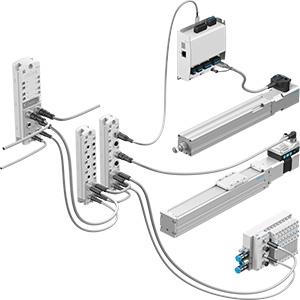

Cpxapi 300x300

CPX AP is a flexible, (decentralized or modular), compact and lightweight automation system with protection class IP65/IP67. The simple structure and high degree of scalability ensure the automation system is both low cost and equipped for future applications. An automation system CPX-AP consists of a bus interface and at least one other module. System communication between the modules takes place via connecting cables or connectors. The process data is exchanged cyclically, plus also includes channels for parameters, configuration, synchronization, and safety. The following module types are available:

  • Bus interface
  • IO-Link controller
  • Input modules
  • Input/output modules
  • Interfaces to valve terminals, etc.
The interconnecting system can achieve high performance characteristics:
  • 2kB I/O data
  • Real time capability
  • Up to 80 modules per bus interface
  • Cable length up to 50 meters between modules
  • Easy to upgrade firmware
  • Separate power connections for zone power control

Phone
+1 800 993-3786
Email
Website
www.festo.com
Odva conformant large
Conformant cip sync

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 12178 Year: 2021

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 32
Explicit Messaging: Originator 0
I/O Messaging: Scanner 0
I/O Messaging: Target (Adapter) 1
Explicit Messaging: Target 32
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
