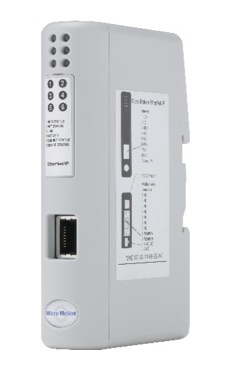

Get multivariable outputs and a powerful configuration and maintenance interface in a convenient, easy-to-install package. This smart module provides fast access to flow, density, temperature and many other parameters.

Specifications:

 Housing:

• Plastic housing with snap-on connection to DIN rail
• Protection classIP20

 Dimensions:

• 4.72” × 2.95” × 1.06” L×W×H (120mm × 75mm × 27mm)

 Power Supply:

 Power Consumption:

• 24 V ±10%
• Maximum 280 mA on 24 V
• Typical
• 100 mA

 Connections and Protocol:

• PLC to EtherNet/IP Module EtherNet/IP
• Alert notification Modus RTU (8-bit) over RS-485

Environmental Temperature:

• Operating 32°F to 131°F (0°C to 55°C)
• Ambient –13°F to +185°F (–25 °C to +85 °C)
• Regulatory Compliance89/336/EEC, amendments 92/31/EEC and 93/68/EEC
• EN 50082-2 (1993)
• EN 55011 (1990) Class A
• EN 61000
• Galvanic Isolation on Modbus serial interfaceEN 60950-1 (2001) Pollution Degree 2
• Material Group IIIb 32 °F to 131 °F (0 °C to 55 °C)
• 250 VRMS or 250 VDC Working voltage
• 500 V Secondary circuit transient rating
