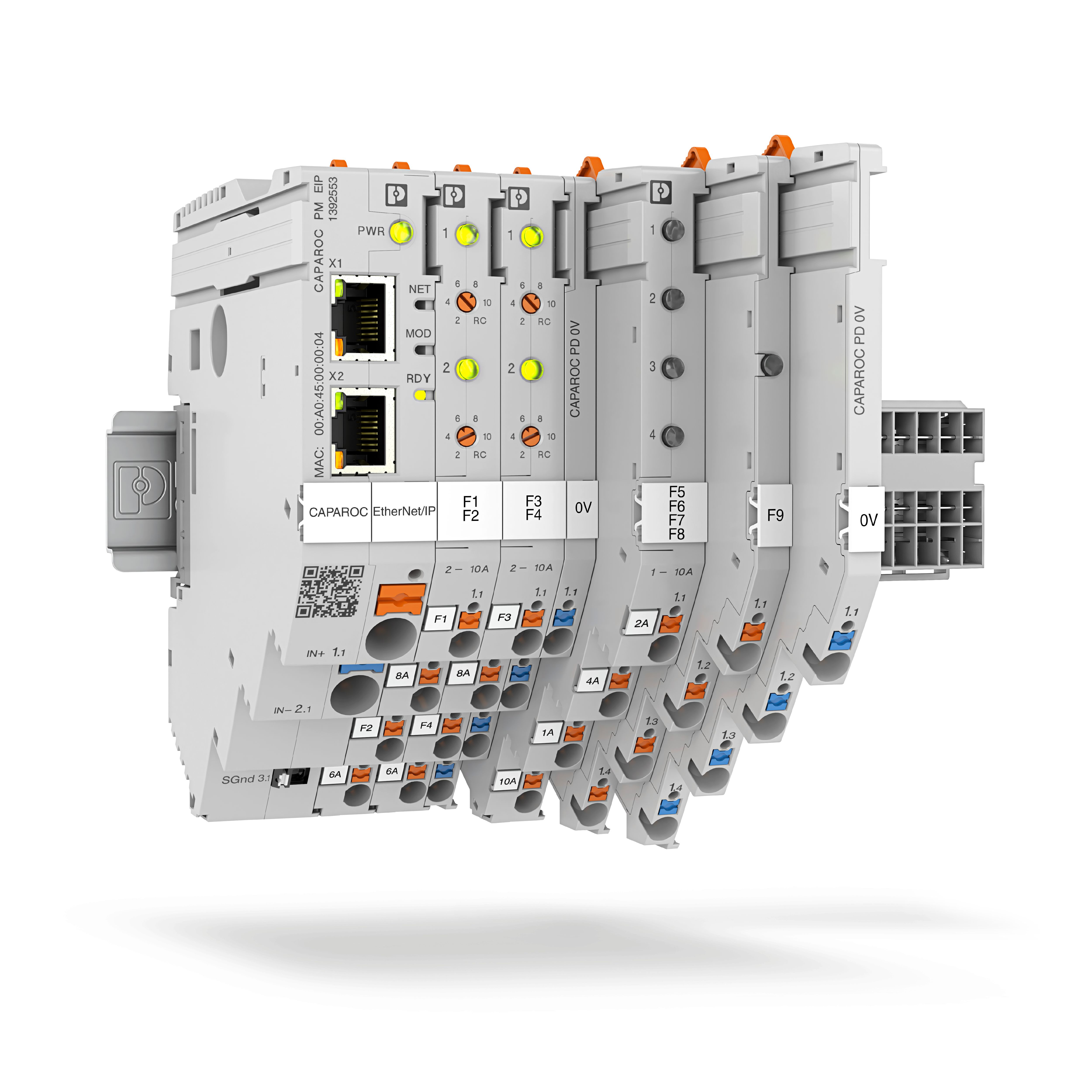

The CAPAROC system communicates with PLCs via EtherNet/IP™ to collect power data and signals so that users can respond to an issue before a failure occurs.

The EtherNet/IP power module ensures consistent communication and control of the circuit breaker modules that protect the end devices. It can communicate numerous data points, such as status per channel, current settings per channel, early warning current load, current and output per channel, short-circuit and overload detection, and under- and overvoltage detection.

The CAPAROC system also has remote access to lock local programming changes, lock all or individual channels, or lock the entire user interface, so changes cannot be made to the system. The circuit breakers can differentiate between overload and short circuit, providing intelligent tripping.

• Customizable electronic circuit breaker system for overcurrent protection in 12 V to 24 V DC applications
• Standard versions offer up to 10A per channel
• Versions up to 4A are approved in accordance with NEC Class 2
• All breaker modules offered are UL 508 Listed and UL 2367 Recognized
• Modules available in 1-, 2-, and 4-channel options

With versatile combination options, easy design-in, and simple operation, you can create a tailored system specifically for your device protection needs.

Website

www.phoenixcontact.com/en-us/us-lp-us-caparoc?cp...

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Download the Declaration of Conformity DOC Number: 12382 Year: 2024

Download the EDS File
