Features and Benefits

Dual RJ45 or M12 connections to suit site standards
Star, Ring and Line topologies are supported for extensive network design compatibility
Option card is fully enclosed within the actuator, maintaining watertight and explosionproof enclosure and certifications
10/100 Mbps speeds supported
PI certified with GSDML files (PROFINET)
ODVA certified with supporting EDS files (EtherNet/IP)
Internal webserver provides fast access to configuration and internal data log file
Setup via standard actuator configuration tools, Insight 2 software or integrated webserver

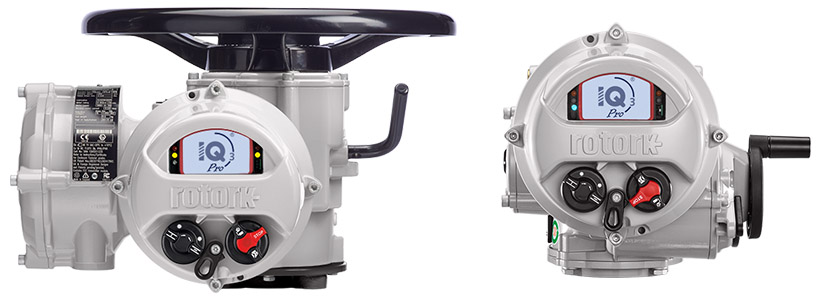

The Ethernet option card is compatible with existing IQ3 and IQ3 Pro range actuators, an upgrade kit and / or firmware upgrade may be requiredIntegrated

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

DOC Number: 12399 Year: 2024

Total CIP	10
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)	4
Explicit Messaging: Target	6

Vendor Specific
Safety Discrete I/O

Odva member

EtherNet/IP	ID: 659
DeviceNet	ID: 659
