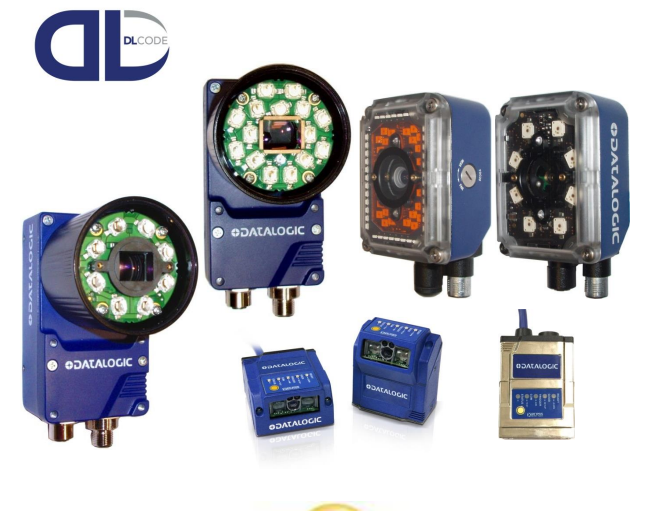

Outstanding performance and smallest form factor.

With low to high resolution sensors, liquid lens for electronic adjustable focus and integrated high power illuminator Matrix is the ideal solution for Automotive, Electronics, Intralogistics and Packaging applications. High power LEDs illuminator suitable for long range reading. The multi LED-chain illuminator with diffuser is really effective in Direct Part Marking (DPM) code reading on flat surface with machining flaw. The high power polarized illuminator is the ideal solution for reading on reflective or glossy surfaces, and allows extreme mounting flexibility since the reader can be mounted 90° to the target surface.

The Continuous High Power Mode (CHPM) lighting option is now available to eliminate the flickering effect avoiding to disturb the operator when the reader is used in Presentation Mode. With its extremely compact dimensions and rotating connectors, the Matrix can be easily integrated into the tightest spaces.

The IP65 and IP67 industrial grade rating and the operating temperature range from 0 to 45 ºC / 32 to 113 ºF guarantee the best quality and robustness in the Manufacturing Industry applications. It offers cost-effective communication options, providing embedded Ethernet/IP industrial protocol.

Matrix imagers guarantee unmatched ease of use and setup thanks to the green and red spot lights, the X-Press™ button, the intuitive HMI, the aiming-system and the DL.CODE™ configuration software which has been improved with the Automatic Setup mode for a quick and easy code reading.

APPLICATIONS

Automotive

• Parts and Assemblies Traceability
• DPM Code Quality Verification and Trending

After Marking

• WIP Traceability and Control

Electronics

• Parts Traceability and Control
• High Resolution Codes Reading
• WIP Control and Tracking
• DPM Code Quality Verification and Trending

After Marking
Intralogistics

• Carton Reading
• Reusable Totes Traceability
• Automated Warehouse
• Automatic Picking Process Control

Packaging

• Label Print & Check
• Secondary Packaging Traceability
• End of Line Palletizing

Phone

+1 800 227 2633

Website

www.datalogic.com/eng/contact-us/how-to-buy-cts-...

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Download the Declaration of Conformity DOC Number: 10049 Year: 2023

Download the EDS File
