1732E Dual Port Adapter Family

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Communications Adapter
Device Profile
General Purpose Discrete I/O: 0x07

Saved to Favorites



726b3ff7cb8bae07f62db236e10544d6c08825c5

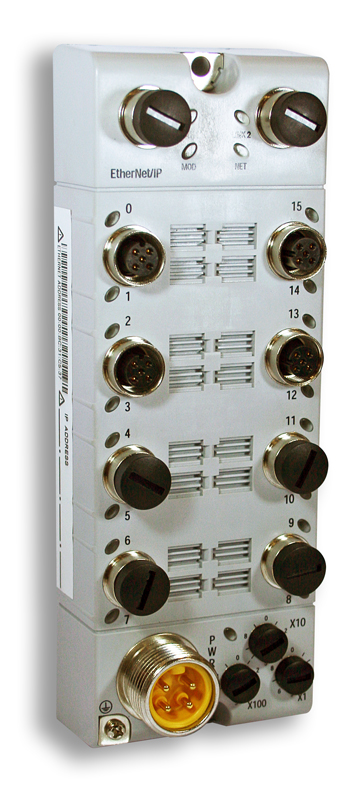

The 1732E I/O module extends the value of a Logix Architecture using the ArmorBlock I/O family Logix functions and features. The 1732E I/O module supports CIP messaging, enabling writing and reading of I/O module parameters online. This adapter transmits at 10/100 MB on EtherNet/IP networks, delivering a distributed I/O solution in a system requiring speed and repeatability.

The 1732E I/O module includes embedded switch technology, allowing for more flexible EtherNet/IP architecture options, with the ability to do ring and linear topologies and with built-in digital I/Os.

Website
www.rockwellautomation.com/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11198 Year: 2022

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 11
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 6
Explicit Messaging: Target 5
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
