1732E Slim ArmorBlock Analog I/O

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
I/O
Device Profile
Vendor Specific: 0x

Saved to Favorites



Ea23fb0c49b8b13edbb92cff4b4c422c92774810

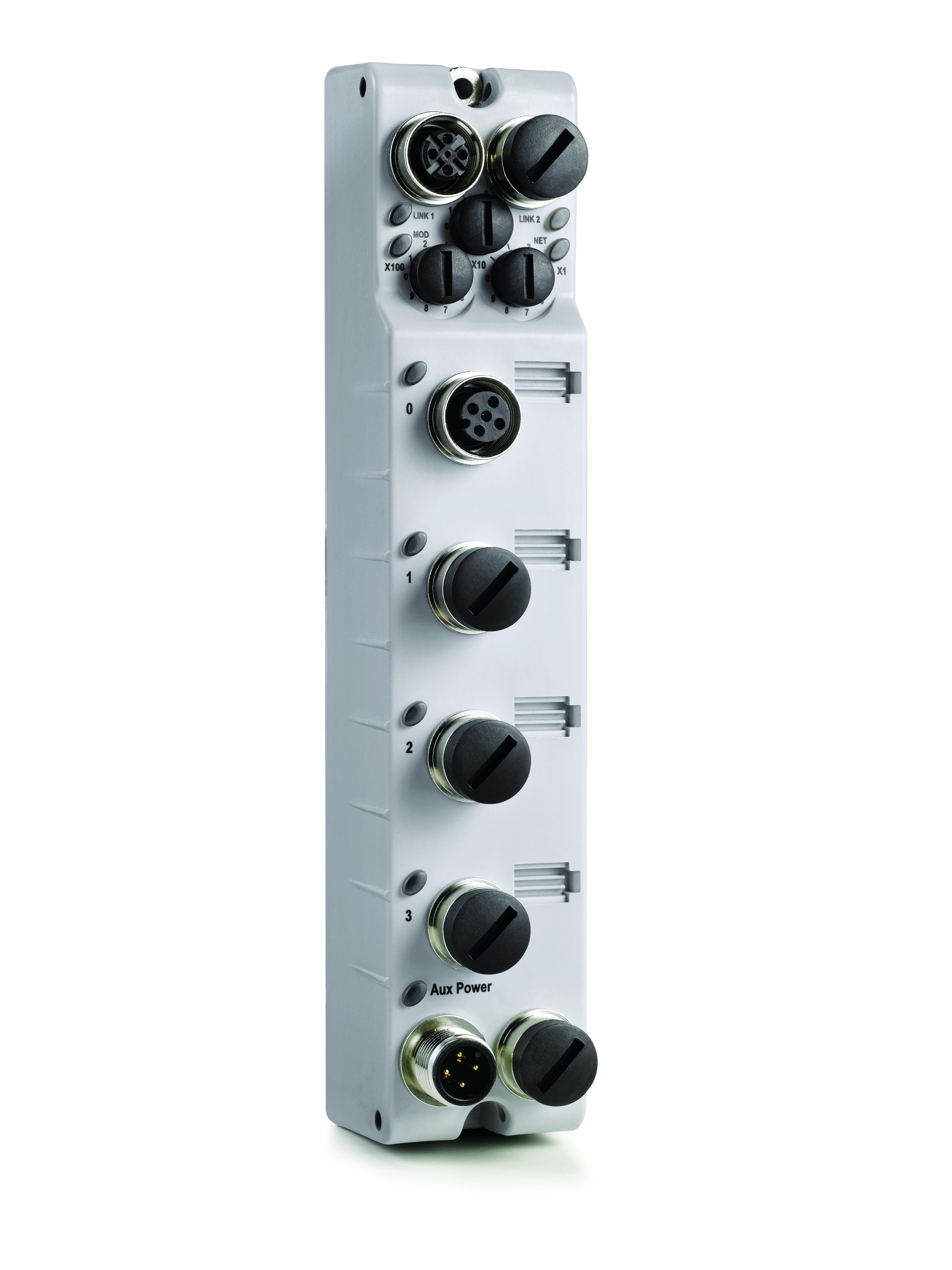

The 1732E Slim ArmorBlock is a 69K rated remote I/O node with embedded EtherNet/IP switches that does not require an additional communication adaptor. The Analog Input (1732E-IF4M12R) and Output (1732E-OF4M12R) modules provide 4 Voltage/Current configurable channels respectively. The RTD temperature input (1732E-IR4IM12R) and thermocouple input (1732E-IT4IM12R) modules are able to handle various types of thermocouples and RTD sensors to suit all applications. All  analog units have a high conversion rate of less than 2 ms and accuracy of 0.1% of full scale with a data sensitivity of 16-Bit.

The 1732E Slim ArmorBlock is equipped with dual-port Ethernet for linear topology, and its Device Linear Ring (DLR) functionality provides extra network resiliency. Dual-port auxiliary power connectors let you daisy chain 24Vdc power.


Website
www.rockwellautomation.com/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11052 Year: 2014

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 25
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 15
Explicit Messaging: Target 10
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
