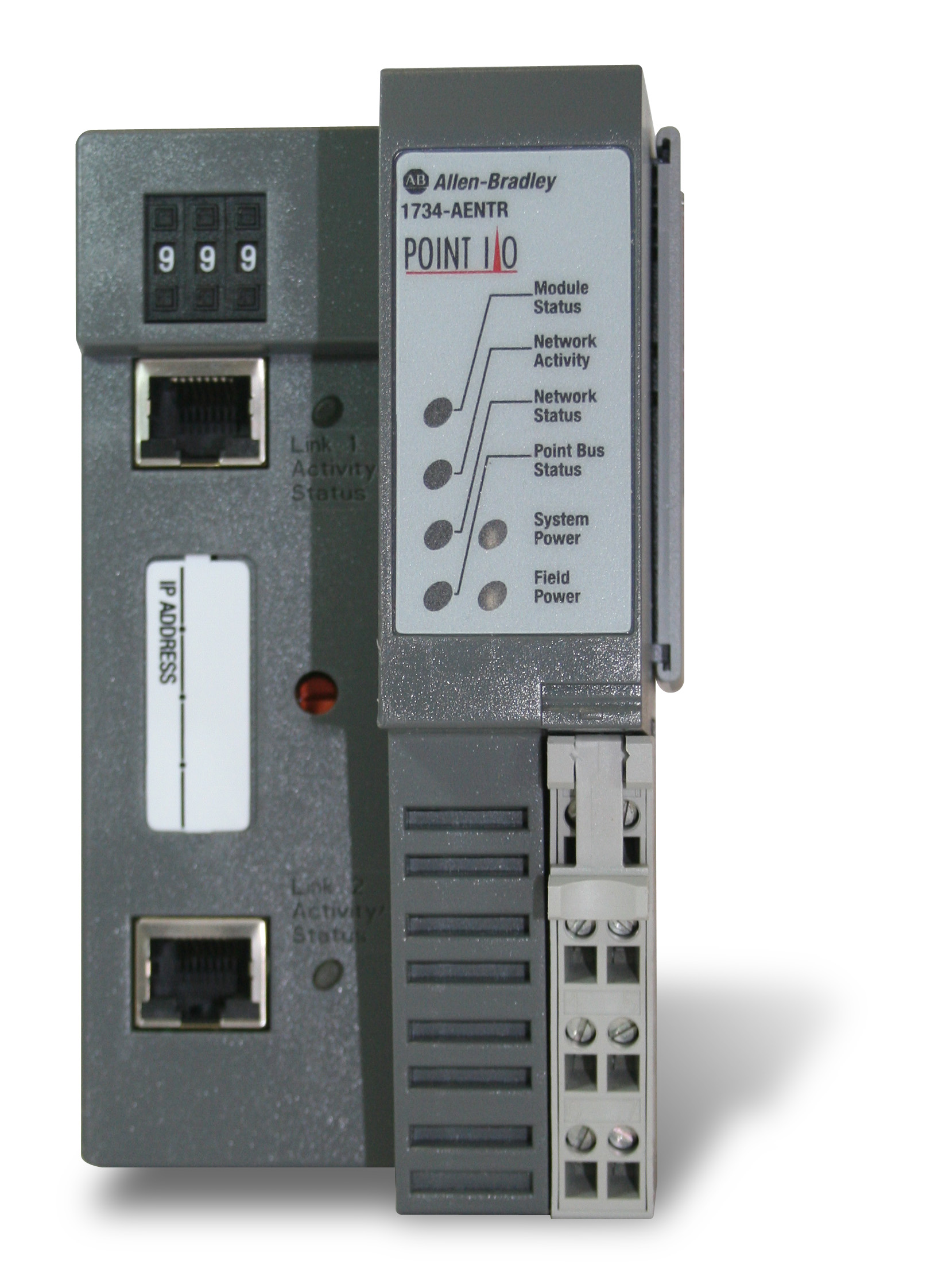

1734-AENTR POINT I/O™ Dual Port EtherNet/IP Adapter

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Communications Adapter
Device Profile
Communications Adapter: 0x0C

Saved to Favorites



4d6ae282ab7f34e2b89aee2a1db51c42673609a8

The 1734-AENTR adapter extends the value of a Logix Architecture using the POINT I/O family Logix functions and features. The 1734-AENTR supports CIP messaging, enabling writing and reading of I/O module parameters online. This adapter transmits at 10/100 MB on EtherNet/IP networks, delivering a distributed I/O solution in a system requiring speed and repeatability. A comprehensive range of diagnostics is included. For a rack connection, a table of two double words is provided to monitor the fault status for each module. Each bit corresponds to one of the 63 I/O modules on the backplane. For a direct connection, the fault status for the connection is displayed in the input fault tag.

The 1734-AENTR adapter supports multiple owners for input modules, helping you achieve higher productivity with increased speed. The adapter helps reduce the cost of redundant I/O and field devices, and improves the system by ensuring that the same source of data is used by multiple processors in the system.

The 1734-AENTR includes embedded switch technology, allowing for more flexible EtherNet/IP architecture options, with the ability to do ring and linear topologies.


Website
www.rockwellautomation.com/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10401 Year: 2017

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 52
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 20
Explicit Messaging: Target 32
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
