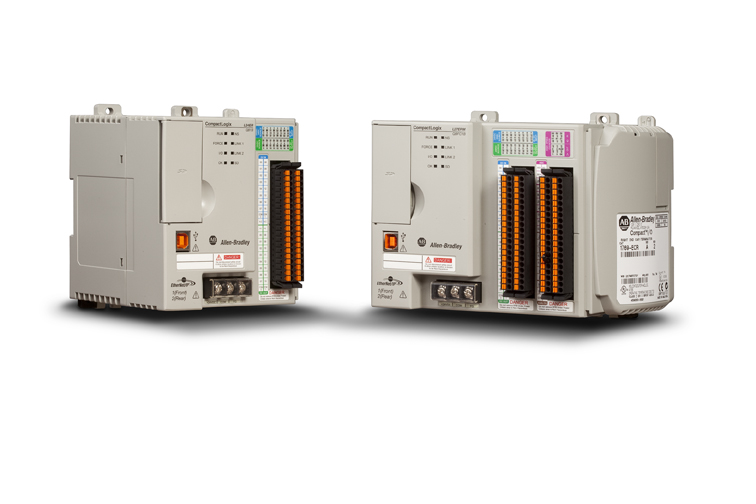

CompactLogix5370 Programmable Automation Controller 1769-L2

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Sync and CIP Motion
Product Category
Controllers Hardware
Device Profile
Programmable Logic Controller: 0x0E

Saved to Favorites



Ea0f3af8a91012e2a89bd3606906a01a5670734c

The CompactLogix5370 L2 controller family expands on the scalability of the existing 1769-L2x family and provides a wider variety of options from which to choose and provide best-fit alternatives for specific application requirements.  These controllers offer a strong CIP Motion solution with performance and cost competitiveness for customers that require high performance in a compact and affordable package including applications that include integrated motion in a common network – EtherNet/IP.

The 1769-L2 controllers offer the following features:

  • Embedded Discrete IO, Universal Analog input, Analog output and High Speed Counter
  • Dual Integrated EtherNet/IP ports (Embedded switch)
  • Secure Digital card support
  • Device Level Ring (DLR) capable
  • Integrated Motion over EtherNet/IP
  • Battery-less operation
  • Raw Sockets capability

750KB Controller

  • 1769-L24ER-QB1B: 16 Digital Input, 16 Digital Output, 4 I/O expansion modules, 8 Ethernet nodes
  • 1769-L24ER-QBFC1B: 16 Digital Input, 16 Digital Output, 4 Channel Universal Analog Input, 2 Analog Output, 4 I/O expansion modules, 8 Ethernet nodes

1MB Controller

  • 1769-L27ERM-QBFC1B: 16 Digital Input, 16 Digital Output, 4 Channel Universal Analog Input, 2 Analog Output, 4 I/O expansion modules, 4 Motion axes 8 Ethernet nodes.


Website
www.rockwellautomation.com/
Odva conformant large
Conformant cip sync Conformant cip motion

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11039 Year: 2024

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 262
Explicit Messaging: Originator 262
I/O Messaging: Scanner 256
I/O Messaging: Target (Adapter) 256
Explicit Messaging: Target 262
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
