MicroLogix 1400 / 1766

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Controllers Hardware
Device Profile
Programmable Logic Controller: 0x0E

Saved to Favorites

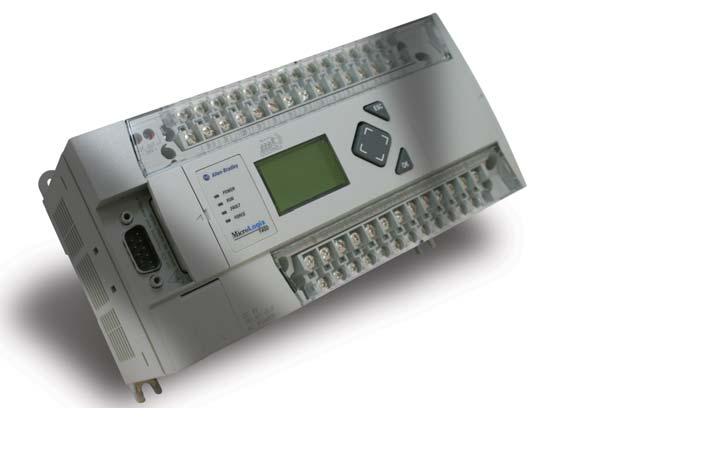

4d82c8757947ee3a4b46b8a63bae15fa8711c4cc

The Rockwell Automation MicroLogix product line is designed to broaden application coverage through available embedded analog inputs, Ethernet communication, faster high-speed counter (HSC), and pulse train output (PTO) capabilities. MicroLogix 1400 controllers maintain the same critical features expected from the MicroLogix 1100 controller and expand that capability with more I/O, faster HSC/PTO, and an additional serial port.

MicroLogix 1400 controllers complement our low-end controllers for applications that require up to 256 digital I/O.


Website
www.rockwellautomation.com/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10656 Year: 2021

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 32
Explicit Messaging: Originator 16
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target 16
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
