PowerFlex® 750-Series Dual-port EtherNet/IP Option Module

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Communications Adapter
Device Profile
Vendor Specific: 0x

Saved to Favorites

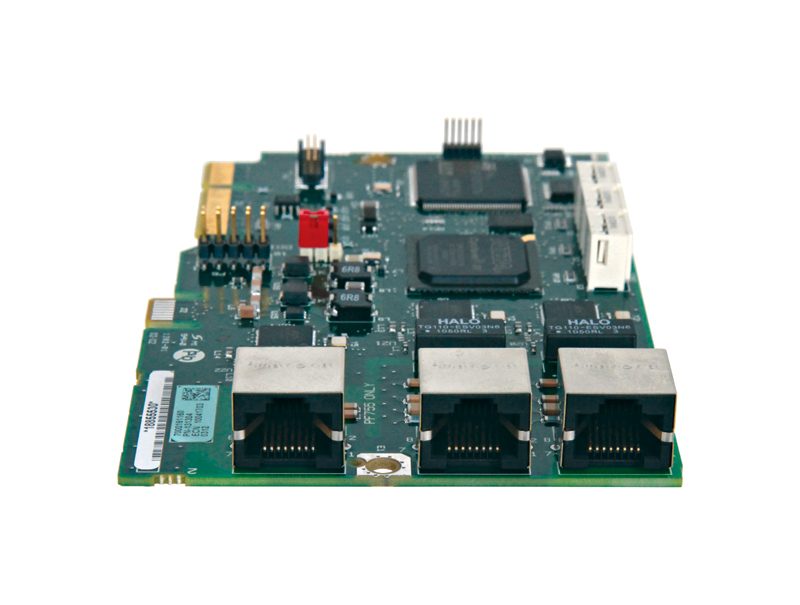

4daf42d407f02efc86b9992436126d31a7d3f1d0

The PowerFlex 750-Series dual-port EtherNet/IP option module provides users of PowerFlex 753 and 755 AC drives with flexible, cost-effective ways to apply EtherNet/IP and supports Device Level Ring (DLR), Linear and Star topologies. DLR-based networks reduce configuration time and costs by minimizing the number of managed switches and reducing cabling needs. Device Level Ring is an ODVA standard providing fault-tolerant connectivity for high drive availability. If one device on the EtherNet/IP network fails, other devices are able to continue operation.

The PowerFlex 750-Series is a robust family of AC drives that provide ease of use, flexibility and performance for a wide variety of applications including fans, pumps, mixers, compressors, conveyors, extruders – as well as other applications. With ratings that extend up to 1500 Hp and 2000 kW, PowerFlex 750-Series drives offer safety options, global voltages, flexible packaging and predictive diagnostics that can help customers prevent unplanned downtime.

Website
www.ab.com/drives
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11061 Year: 2012

Email icon   Request EDS File

Maximum # Connections Supported
Total CIP 17
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 1
Explicit Messaging: Target 1
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
