TR Linear Absolute Encoder LA

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Sensors Process
Device Profile
Encoder: 0x22

Saved to Favorites



D7424bc90fe701967234f2fa83c7cad81e6fae47

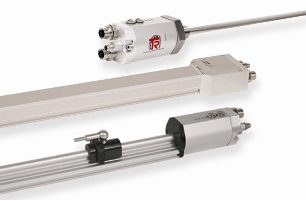

The Absolute Linear Encoder is designed for operation in 100Base-TX Fast Ethernet networks with max. 100 Mbit/s, specified in ISO/IEC 8802-3. Communication via EtherNet/IP occurs in accordance with IEC 61158 et seqq., Type 2 and IEC 61784-1, CP 2/2 Type 2.  The device profile corresponds to the "Encoder Device Profile 0x22" of the ODVA EtherNet/IP specification.

Product Features:

  • Supply voltage: 19-27 V DC
  • Working temperature: -20 – +70 °C
  • Protection class: IP 65
  • Measuring length: up to 2000 mm; > 2000 mm on request, in steps of 50 mm
  • Resolution: max. 0.001 mm

Programming of the following parameters via EtherNet/IP:

  • Resolution
  • Counting direction
  • Preset value
  • Averaging of position
  • IP parameters

Phone
+49 7425 228 0
Email
Website
www.tr-electronic.de/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10714 Year: 2014

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 10
Explicit Messaging: Originator 10
I/O Messaging: Scanner 10
I/O Messaging: Target (Adapter) 10
Explicit Messaging: Target 10
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
