EZ-ZONE® Family

Distinctive CIP Services
Product Category
Controllers Temperature
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

Watlow odva

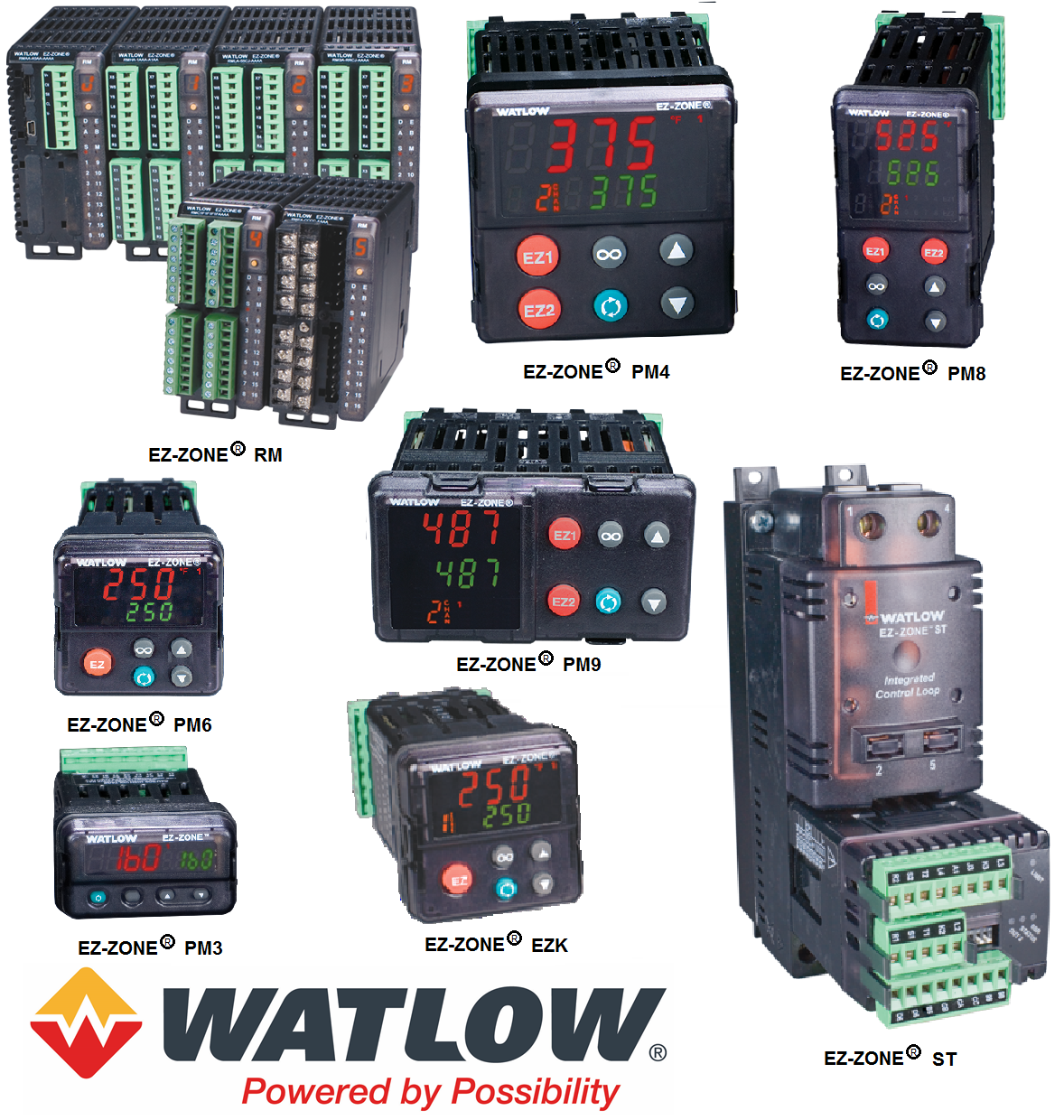

Watlow's modular and scalable EZ-ZONE® family of controllers offers solutions that simplify thermal loop management, reduce system complexity and lower the total cost of control loop ownership.

EZ-ZONE products can be configured with any or all of these features: from 1 to 152 PID and ON/OFF control zones with automatic and TRU-TUNE™+ adaptive tuning, up to 256 monitoring channels, agency-approved over/under limit control, ramp and soak profiling, up to 75 Ampere solid state control outputs, zero-cross and phase-angle fired power control, heat sink, mechanical contactor for power shut-down, remote user interface, data acquisition, and a variety of communication protocols including Modbus® RTU, Modbus TCP, PROFIBUS DP, DeviceNet™ and EtherNet/IP™. Products have agency approvals including UL and CSA, are RoHS by design and conform to CE standards.

Selecting a product that integrates control, limit and power switching in a single package significantly reduces installation costs and system complexity because a less crowded panel, fewer components and fewer connections minimize design and assembly time.

Cover all your application needs with one product family — EZ-ZONE.

+1 800 WATLOW2
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10514 Year: 2007

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 7
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 1
Explicit Messaging: Target 6
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O

bookmark Bookmark This Page

Member Gallery Listing From

Watlow logo tag 3color

ODVA Technologies Licensed to this Company

EtherNet/IP ID: 153
DeviceNet ID: 153
