1000-Series Drive Family

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Motor Control AC Drives
Device Profile
AC Drives: 0x02

Saved to Favorites



Ph.industrialfamily.05

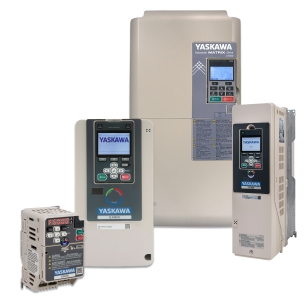

The 1000-series drive family consists of various drives to fit your application needs. The V1000 is a compact open loop vector drive for your small motor needs. Fan and pump applications can use the P1000, tailored to provide energy savings in those applications. For more demanding applications, the general purpose A1000 drive would be a viable choice, offering open and closed loop capability. All parameters, diagnostics, and operational commands are accessible via the EtherNet/IP option board.

There are two options to choose from: single port RJ45 connector or dual port RJ45 connector.

Features Include:

  • Power rating from 1/8 HP to 1000HP
  • Voltage Ratings: 200-240V Single or Three-Phase, 380-480V Three-Phase, 600V Three-Phase
  • Induction Motor (IM) or Permanent Magnet Synchronous Motor (PM) control
  • Open and closed loop control
  • Keypad diagnostics
  • Environmentally Friendly: Compliant with RoHS # Removable terminal block with automatic parameter backup function
  • Long Life: 28 years mean-time-between-failures
  • Webpage diagnostics

Phone
+1 800 YASKAWA (927-5292)
Email
Website
www.yaskawa.com/products/drives/industrial-ac-dr...
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10763 Year: 2022

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 8
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 2
Explicit Messaging: Target 6
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
