Limitorque MX Electric Actuator

Network(s)
DeviceNet
Distinctive CIP Services
N/A
Product Category
Actuators Electric
Device Profile
Generic Device: 0x00

Saved to Favorites



2b20dcce8d99bd6c1adbd6f05825165cb69bee16

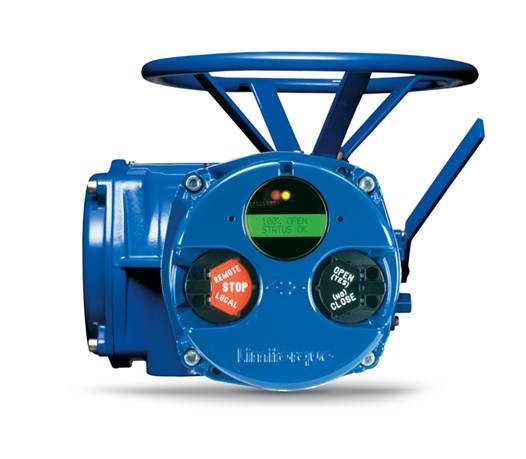

The MX is Flowserve Limitorque's product entry in the non-intrusive, double-sealed, smart electronic actuator marketplace. Introduced to International markets in 1997 and to North America in 1998, the MX has been readily accepted into all major market segments, including Power Generation, Petro-chemical, and Water/Waste Water Treatment.

The MX can be found on all six habitable continents. It is the platform for current and future network developments, including DeviceNet. The MX can easily be distinguished from other smart valve actuators with its patented absolute encoder that doesn't require battery back-up and features B.I.S.T.(Built In Self Test) capability for self-diagnosis. Additional features include easy configuration in nine languages, patented LimiGard circuitry, which safeguards the actuator from spurious electro-magnetic interference.

The MX can provide torque output of up to 1700 ft.lbs. Several enhancements have been made to the MX, including SMT (Surface Mount Technology) controls. An improved ACP (Actuator Control Panel) with recessed knobs and solid state Hall-effect devices.



Phone
+1 434 528 4400
Email
Website
www.flowserve.com/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10331 Year: 2020

Eds icon   Download the EDS File

Messaging
Explicit Peer-to-Peer
I/O Peer-to-Peer
Other Settings
Quick Connect
Master Scanner
Faulted Node Recovery
Configuration Consistency Value
Baud Rates
125K
250K
500K
I/O Slave Messaging
Bit Strobe
Polling
Cyclic
Change of State
Device Configuration
Hardware Switches
EDS
Parameter Object
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
