501, 502, 503, 2002, 2005, 2012, 2035, ISO 15407-2, ISO 5599/2 Series Valve Manifolds — G3

Network(s)
DeviceNet
Distinctive CIP Services
N/A
Product Category
Actuators Pneumatic Valves
Device Profile
Pneumatic Valve(s): 0x1B

Saved to Favorites



G3 devicenet 503 series valve manifold asconumatics

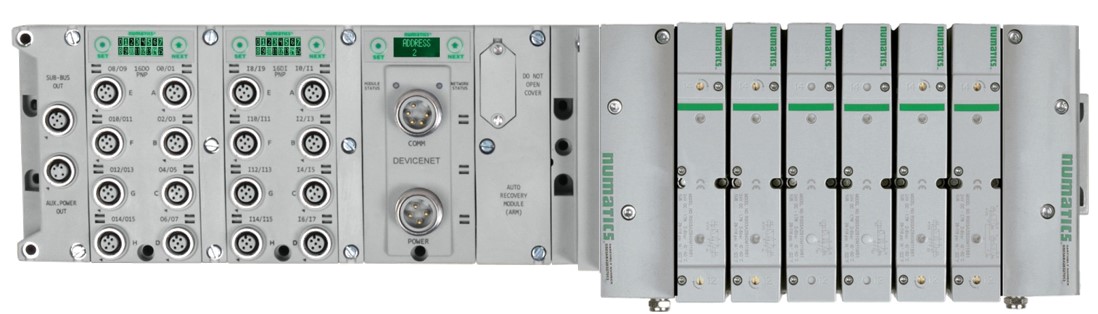

ASCO Numatics G3 fieldbus manifolds have incorporated the latest in fieldbus electronic technology. Each fieldbus module incorporates an innovative integrated graphic display allowing for expanded commissioning capabilities as well as easy to read visual status and diagnostics. G3 electronics are extremely flexible incorporating pneumatic valves and I/O in a centralized fashion or distributed as valves, valves with I/O, I/O, or both. Exceptional capacity, one node can address up to 1200 Inputs / 1200 Outputs. Manifolds can drive up to 32 valve solenoids and 16 manifolds can be driven from one communication module. An ARM (Auto Recovery Module) is available that stores the node settings in case of a critical failure; after power up the ARM disconnects from critical internal circuitry.

The G3 Electronics Platform connects to the 500, 2000, ISO 5599/2 and ISO 15407-2 series valve platforms allowing for maximum flexibility.

Features Include:

  • Supports QuickConnect
  • Digital I/O, Analog I/O, and Specialty Modules
  • SPEEDCON ½ Turn I/O Connections
  • Short Circuit Protected I/O
  • Centralized/Distributed manifolds use same I/O Modules


Phone
+1 888 686 2842
Email
Website
asco.com/g3
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10631 Year: 2008

Eds icon   Download the EDS File
Messaging
Explicit Peer-to-Peer
I/O Peer-to-Peer
Other Settings
Quick Connect
Master Scanner
Faulted Node Recovery
Configuration Consistency Value
Baud Rates
125K
250K
500K
I/O Slave Messaging
Bit Strobe
Polling
Cyclic
Change of State
Device Configuration
Hardware Switches
EDS
Parameter Object
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O


bookmark Bookmark This Page

Member Gallery Listing From

159

ODVA Technologies Licensed to this Company

EtherNet/IP ID: 52
DeviceNet ID: 52
