ArmorBlock® I/O (1732D-xxxx)

Network(s)
DeviceNet
Distinctive CIP Services
N/A
Product Category
I/O
Device Profile
General Purpose Discrete I/O: 0x07

Saved to Favorites



73833b2565ecf092ddfcaef126acae2aea4003d1

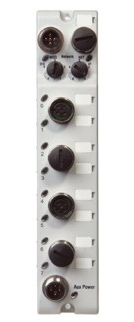

ArmorBlock I/O on DeviceNet (1732D-xxxx) is an On-Machine I/O product. The modules are rated IP67 and NEMA 4X, allowing you to reduce or eliminate the number of enclosures or trays that were once necessary to protect either the media or the block in most harsh environments, saving you time and costs relative to your installation. I/O connections are available in M12 or M8 sizes. Modules are available as input only, output only or the unique self-configuring versions where every one of the 8 or 16 I/O points can be either an input or an output.

Features Include:

  • M12 or M8 I/O connectors
  • Selectable Input filter times
  • Selectable Fault response
  • Output Monitoring in the self-configuring versions

Website
www.rockwellautomation.com/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 10386 Year: 2013

Eds icon   Download the EDS File
Messaging
Explicit Peer-to-Peer
I/O Peer-to-Peer
Other Settings
Quick Connect
Master Scanner
Faulted Node Recovery
Configuration Consistency Value
Baud Rates
125K
250K
500K
I/O Slave Messaging
Bit Strobe
Polling
Cyclic
Change of State
Device Configuration
Hardware Switches
EDS
Parameter Object
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
