Stratix 5400 Industrial Ethernet Switches

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Sync
Product Category
Communications Bridges and Gateways
Device Profile
Managed Ethernet Switch 0x2C

Saved to Favorites

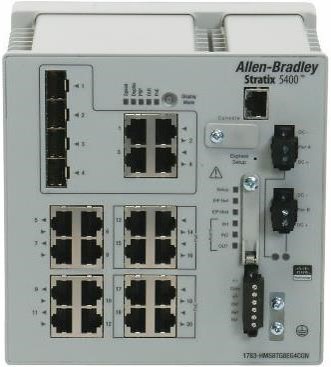

Stratix 5400

The Stratix 5400 Industrial Ethernet Managed Switches support layer 2 switching and layer 3 routing with additional Gigabit (GE) Power over Ethernet (PoE), and GE fiber ports. This switch can help increase network speed, and it can provide flexibility in the design of network architectures.

  • Supports dual gig ring configurations for high performance network resiliency
  • Uses Studio 5000® Add-on Profiles (AOPs) to enable premier integration into the Rockwell Automation Integrated Architecture® system
  • Includes embedded Cisco technology to help enable integration with the enterprise network
  • Provides Integrated Network Address Translation (NAT) for 1:1 IP address mapping which helps to reduce commissioning time

Website
www.rockwellautomation.com/
Odva conformant large
Conformant cip sync

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11317 Year: 2018

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 32
Explicit Messaging: Originator 0
I/O Messaging: Scanner 0
I/O Messaging: Target (Adapter) 32
Explicit Messaging: Target 32
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
