842E-CM Integrated Motion on EtherNet/IP™ Encoder

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Sync and CIP Motion
Product Category
Sensors Process
Device Profile
CIP Motion Drive: 0x25

Saved to Favorites



842e cm integrated motion on ethernet ip encoder

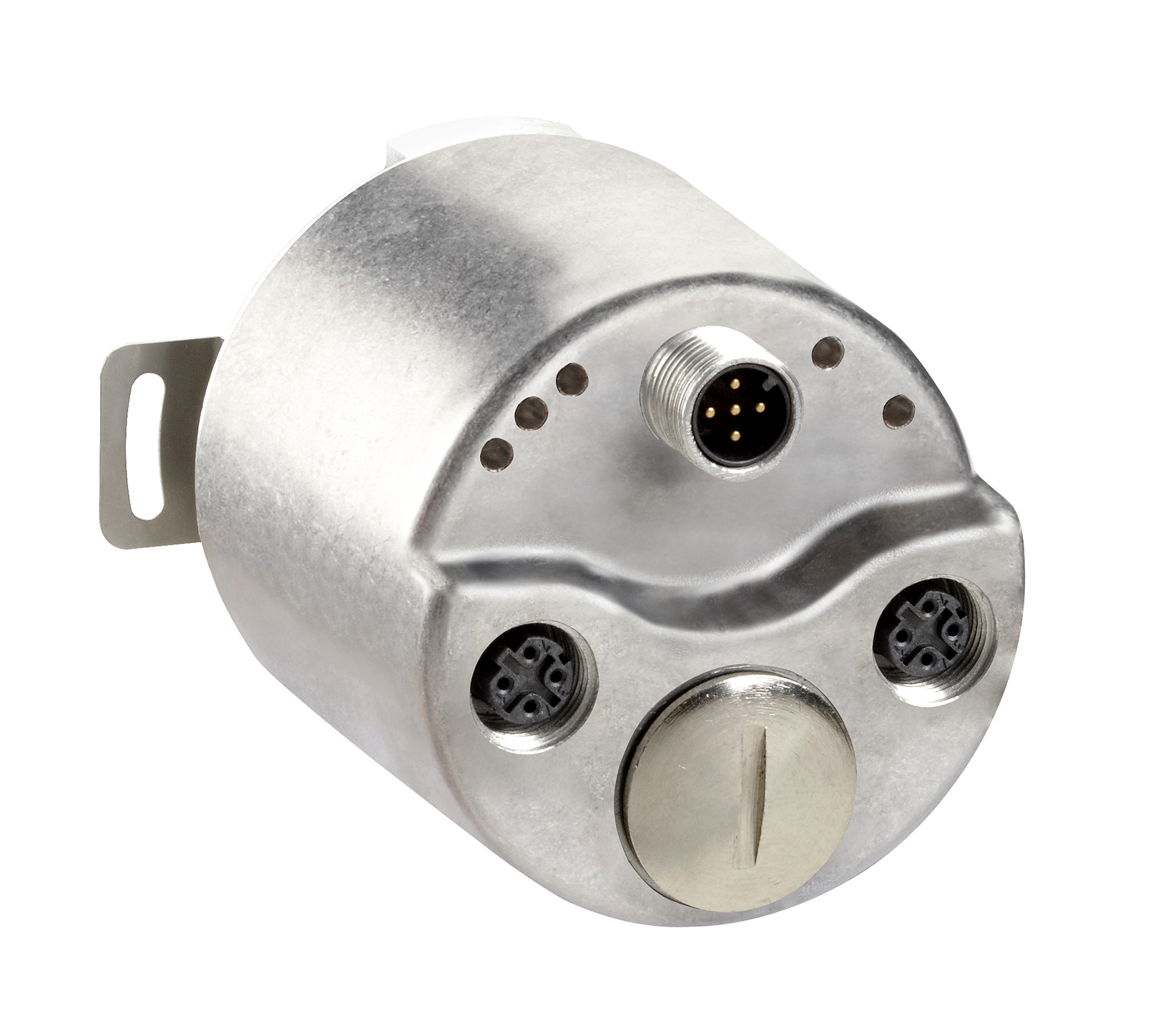

Bulletin 842E-CM Integrated Motion on EtherNet/IP™ Absolute Encoders are designed for motion control applications that require feedback-only axes. These encoders support the standard motion instruction set in the Studio 5000 Logix Designer™ application. By providing auxiliary feedback directly through an EtherNet/IP network, these encoders eliminate the need for point-to-point wiring. You can use them in a variety of network topologies such as linear, ring, or star. These encoders leverage CIP Sync, a time synchronization extension that is fully compliant with IEEE 1588.

  • Provides EtherNet/IP Interface that is compliant with IEEE 1588
  • Offers high resolution feedback through single-turn and multi-turn options
  • Supports Ethernet topologies including linear, ring and star
  • Provides easy IP addressing
  • IP67 protection class
  • Available in solid and hollow shafts

Website
www.rockwellautomation.com/
Odva conformant large
Conformant cip sync Conformant cip motion

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11190 Year: 2014

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 12
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 6
Explicit Messaging: Target 6
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
