Allen-Bradley E300 Overload Relay

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Energy
Product Category
Motor Control Other
Device Profile
Motor Overload: 0x03

Saved to Favorites

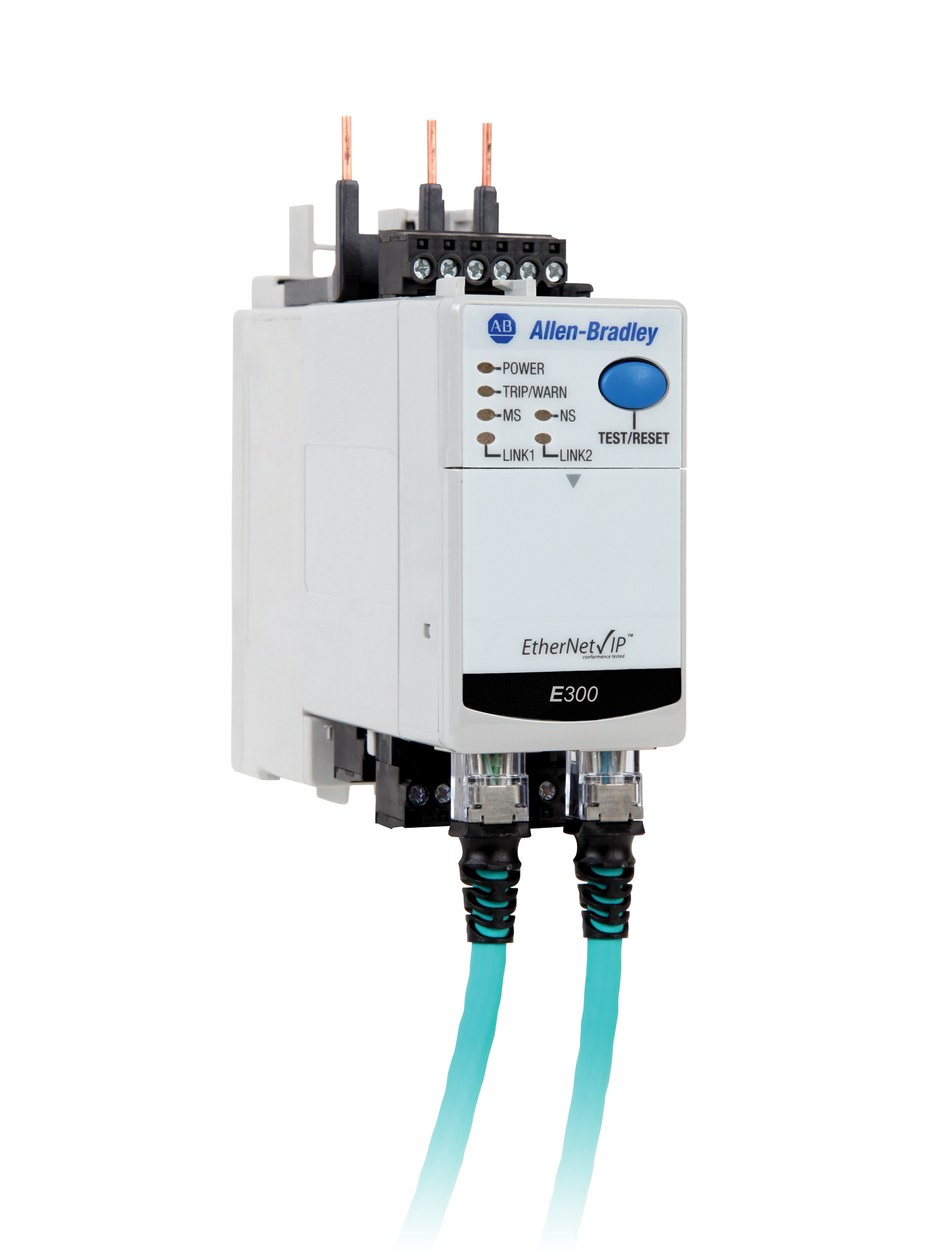

E300 overload relay ab

The E300 Electronic Overload Relay is the next generation electronic overload from Allen-Bradley®. Its modular design, communication options, diagnostic information, simplified wiring and integration into Logix make this the ideal overload for motor control applications in an automation system. The E300 Overload Relay provides flexibility, reduces engineering time and maximizes uptime for important motor starter applications.

Features include:
  • On-Device Settings, including network address configuration, restore factory default settings, and security setting options.
  • Simplified wiring between E300 overload relay and 100-C contactor
  • Dual Port EtherNet/IP supports device level ring topologies
  • Removable Terminal Blocks

Website
www.rockwellautomation.com/
Odva conformant large
Conformant cip energy

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11192 Year: 2013

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 8
Explicit Messaging: Originator 1
I/O Messaging: Scanner 1
I/O Messaging: Target (Adapter) 2
Explicit Messaging: Target 6
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
