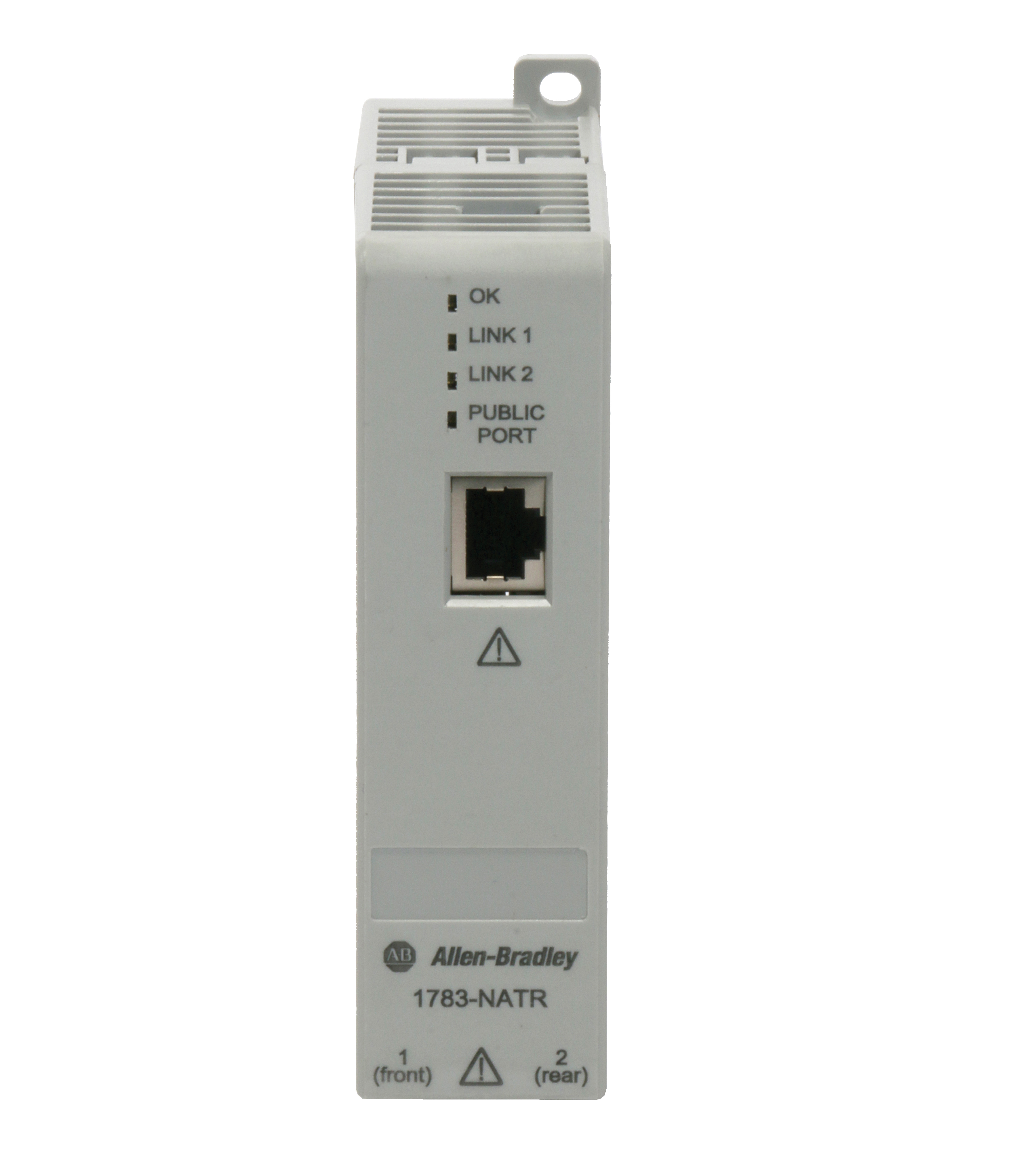

1783-NATR, Configurable Network Address Translation Router

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Communications Bridges and Gateways
Device Profile
Communications Adapter: 0x0C

Saved to Favorites



1783 natr

Our Bulletin 1783 Network Address Translation Router (NATR) uses simple 1:1 Network Address Translation (NAT) to map IP addresses on the machine subnet to IP addresses on the control network with support for up to 32 translation mappings.

  • Supports both Linear and Device Level Ring (DLR) topologies on the machine network
  • Configurable via web page or Electronic Data Sheet (EDS) Add-on Profile (AOP)
  • Uses an SD card to support device configuration backup/restore
  • Enables redirection of selected protocols, such as CIP, ICMP, HTTP, DNS for stable network connection

Website
www.rockwellautomation.com/
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11369 Year: 2020

Eds icon   Download the EDS File
