Solution Kit for R-IN32M3-EC

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Developer's Tools
Device Profile
Communications Adapter: 0x0C

Saved to Favorites

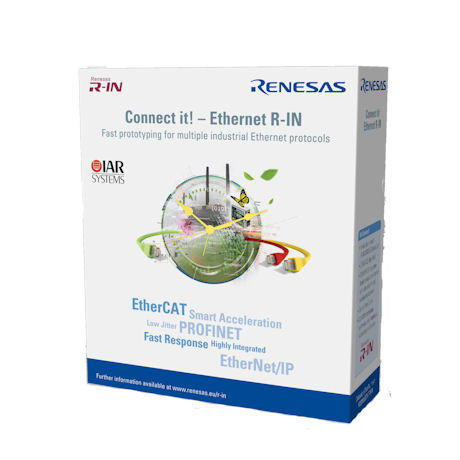

Solution kit for r in32m3 ed

The R-IN solution kit is an all-in-the-box package for fast evaluation and rapid prototyping of Ethernet/IP as well as other multiple industrial Ethernet protocols. The highly integrated R-IN32M3 provides exceptional real-time response and Ethernet processing capabilities at best-in-class low power performance.

The Connect It! solution kit is based on the IAR Kickstart Kit. It features a small R-IN32M3-EC evaluation board for evaluation of the industrial Ethernet interfaces, an evaluation version of IARs embedded workbench for ARM (30-days trial or code size limited version), an I-jet Lite ARM Cortex-M3 JTAG debugger, as well as sample software including evaluation versions of several industrial Ethernet protocols.

The evaluation board carries a R-IN32M3-EC device, a serial flash memory as boot media, switches and LEDs for application IO-data control, two 100 Mbps Ethernet ports and a serial-to-USB connection for an external terminal emulation. Power supply is available by the dedicated power plug or by the USB connector.

Besides EtherNet/IP, the Solution kit comes with a large software bundle of other protocol stacks from EtherCAT, PROFINET and Modbus TCP and includes hardware, software and integrated development environment necessary for safe, quick and easy evaluation and development.

Full product information is available here.

Link to the Connect-it! Ethernet R-IN Solution Kit Video Tutorial.

Link to the Renesas On-Line Shop.

Email
Website
www.renesasshop.com/solution-kit-for-rin32m3-ec
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11472 Year: 2016

Email icon   Request EDS File

Maximum # Connections Supported
Total CIP 9
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 3
Explicit Messaging: Target 6
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
