Memograph M RSG45

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Communications Adapter
Device Profile
Generic Device: 0x2B

Saved to Favorites

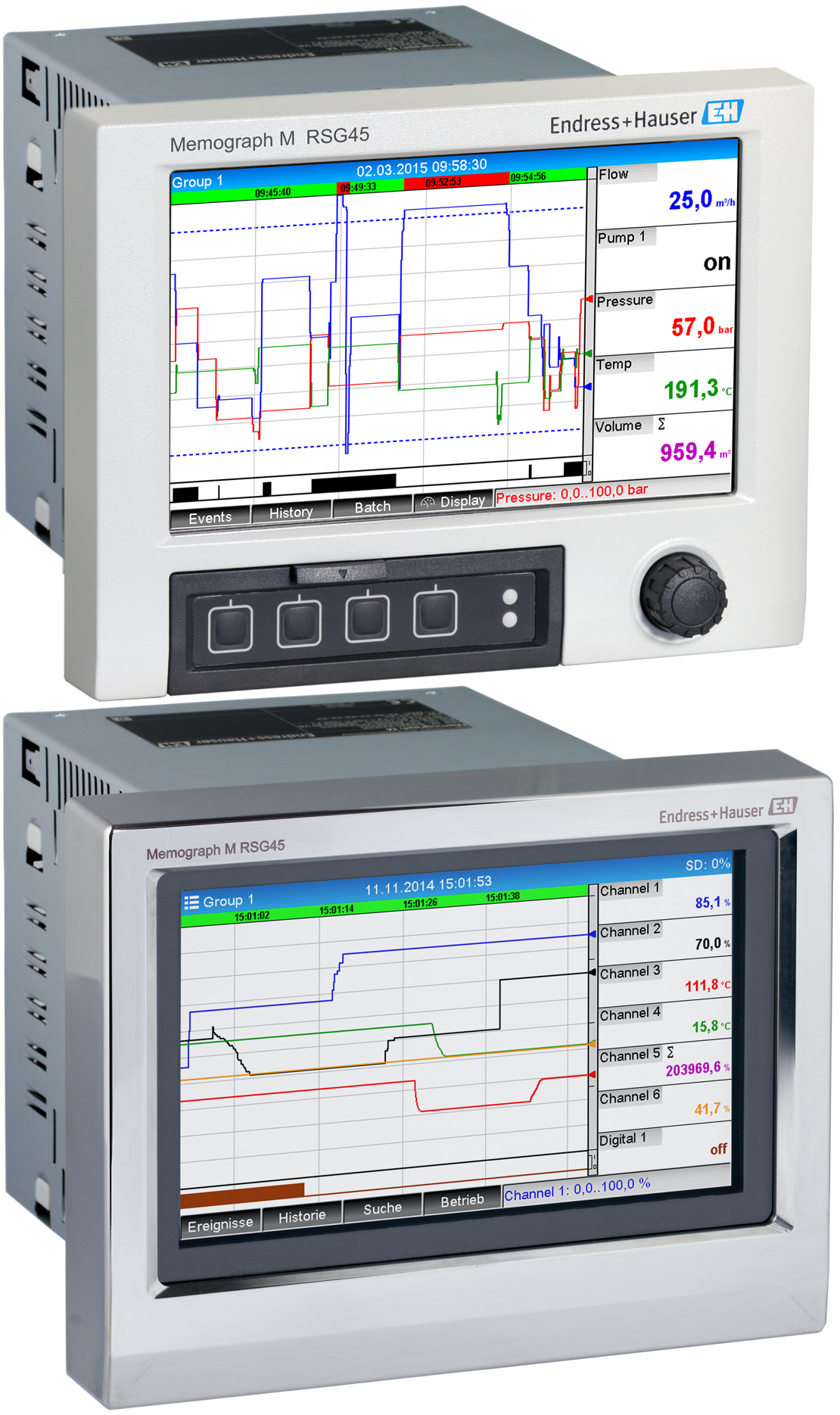

Rsg45 memograph

Electronic acquisition, display, recording, analysis, remote transmission and archiving of analog and digital input signals as well as calculated values.

Your benefits:

  • High data security: tamper-proof data storage and personalized access authorization with electronic signature (FDA 21 CFR 11)
  • 7" TFT display for the clear presentation of measured values
  • Stainless steel front with touch operation: trouble-free operation in demanding environments such as hygienic or hazardous areas
  • HART® input card: HART® sensors directly connected provide accurate process values for calculation and logging
  • HART® gateway: time-saving direct access to HART® sensors in the field using Memograph M without interrupting the measuring loop
  • Integrated Web server: remote access to device operation and visualization for lower maintenance costs
  • WebDAV: data saved on SD card transmitted directly to a PC via HTTP without any additional software
  • Future-oriented: simple device upgrade to up to 20 universal/HART® and 14 digital inputs or 12 relay outputs
  • System capability: supports common fieldbuses (e.g. EtherNet/IP) for fast integration into different systems
  • Standard interfaces: can connect a USB keyboard or mouse for faster data entry

Website
www.endress.com
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11524 Year: 2016

Eds icon   Download the EDS File

Maximum # Connections Supported
Total CIP 20
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 4
Explicit Messaging: Target 16
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
