MGB with EtherNet/IP

Distinctive CIP Services
CIP Safety
Product Category
Safety Discrete I/O
Device Profile
Vendor Specific: 0x

Saved to Favorites

Mgb ethernetip

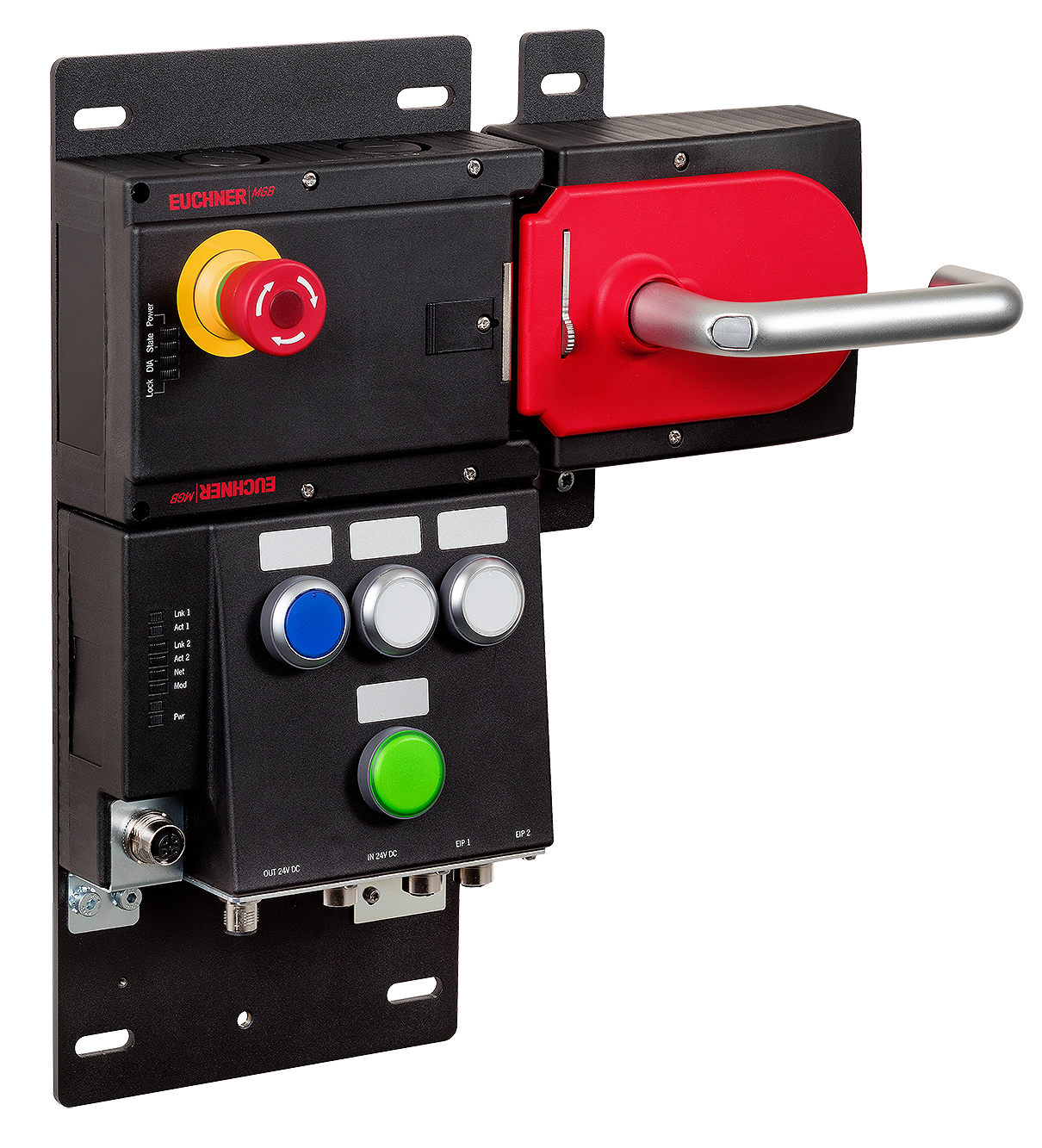

The MGB is a safety system with guard locking and guard lock monitoring for the protection of safety doors on machines and installations. In the EtherNet/IP version, we now also make the wiring easier for you. You define which element is to be integrated and the related function.

The MGB supplies the protocol frame with the necessary CIP Safety input and output bytes required. Whether interlocking, guard locking, escape release or other functions such as buttons for start/stop, emergency stop, selector switch, etc. – the MGB meets all requirements for safety-related applications and can be equipped on a customer-specific basis. Comprehensive diagnostic information in the form of EtherNet/IP messages provides a fast and detailed overview of the device status. Due to the ease with which parameters can be set, even the replacement of the system in case of service is a simple matter and can be performed in a few minutes.

+49 711 7597 500
Odva conformant large
Conformant cip safety

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11470 Year: 2023

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O

bookmark Bookmark This Page

Member Gallery Listing From

Euchner logo

ODVA Technologies Licensed to this Company

EtherNet/IP ID: 1324
