MEM-BUS EtherNet/IP

Network(s)
EtherNet/IP
Distinctive CIP Services
CIP Sync
Product Category
Sensors Process
Device Profile
Encoder: 0x22

Saved to Favorites

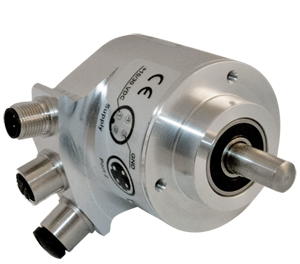

Memb540eip 300px

High resolution absolute rotary encoder series MEM-Bus offer high performance and reliability in harsh industrial environments. The innovative electronic construction technology - involving no mechanical gear – allows to reach high acceleration and speed values and grants the transducer long life. Several mechanical solutions are available: 58 mm diameter clamping or synchro flange, size25 flange, solid or blind hollow shaft, coupling.

Product overview:
  • 29-bit resolution
  • Multiturn (65536 turns - 16 bit)
  • CIP Sync™
  • Device Level Ring (DLR)
  • IP address settable by hardware and software (DHCP/BOOTP)
  • Synchronous Real Time transmission
  • Encoder status diagnostic & data communication by 4 duo LEDs
  • Position, speed and alarms comprehensive data managed by assembly object 110
Parameters setting via TCP/IP:
  • steps/revolution
  • revolutions number
  • preset
  • rotation direction
  • speed unit (steps/s, steps/ms, rev/min)
  • position and speed alarm thresholds
Product Features:
  • Supply voltage: 10-30 V DC
  • Working temperature: -30°C +70°C
  • Protection class: IP 67 (shaft side:IP 65)
  • Operating speed: up to 6000 rpm




Phone
+39 024 519561
Email
Website
www.elap.it/absolute-encoders/encoder-mem-bus-et...
Odva conformant large
Conformant cip sync

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 11803 Year: 2018

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP 5
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter) 5
Explicit Messaging: Target 10
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
