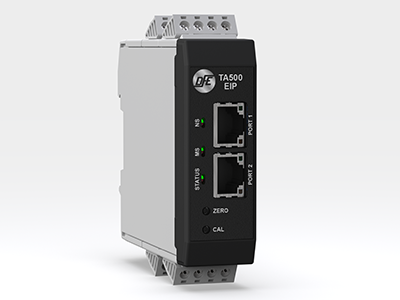

The TA500 EIP Tension Amplifier is a compact, single-channel tension transducer interface with EtherNet/IP™ connectivity. It can be used with DFE tension transducers (load cells) to monitor tension in any zone of web or filament processing machinery.

DFE’s Quik-Cal™ push-button zero and calibration eliminates pot adjustments and associated drift to make calibrating the TA500 simple, fast and reliable. Powered by 24 VDC, the amplifier boosts a millivolt-level tension signal from tension transducers (load cells) and provides simultaneous EtherNet/IP™, 0-10 VDC and 4-20 mA connections to interface with a PLC, drive or display meter.

Built-in diagnostic capability quickly identifies faulty load cells, incorrect wiring, calibration issues and amplifier ADC/DAC failure.

The compact size and diverse integration capabilities of the TA500 EIP tension amplifier make it a preferred option for OEMs and end users seeking next-generation monitoring and control solutions designed to support Industry 4.0.

Phone

+1 603 332 6150

Email

Website

dfe.com/products/tension-amplifiers/ta500-eip-te...

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Download the Declaration of Conformity DOC Number: 12075 Year: 2021

Download the EDS File
