IPS458i, IPS258i

Network(s)
EtherNet/IP
Distinctive CIP Services
N/A
Product Category
Vision Sensors
Device Profile
Generic Device: 0x2B

Saved to Favorites

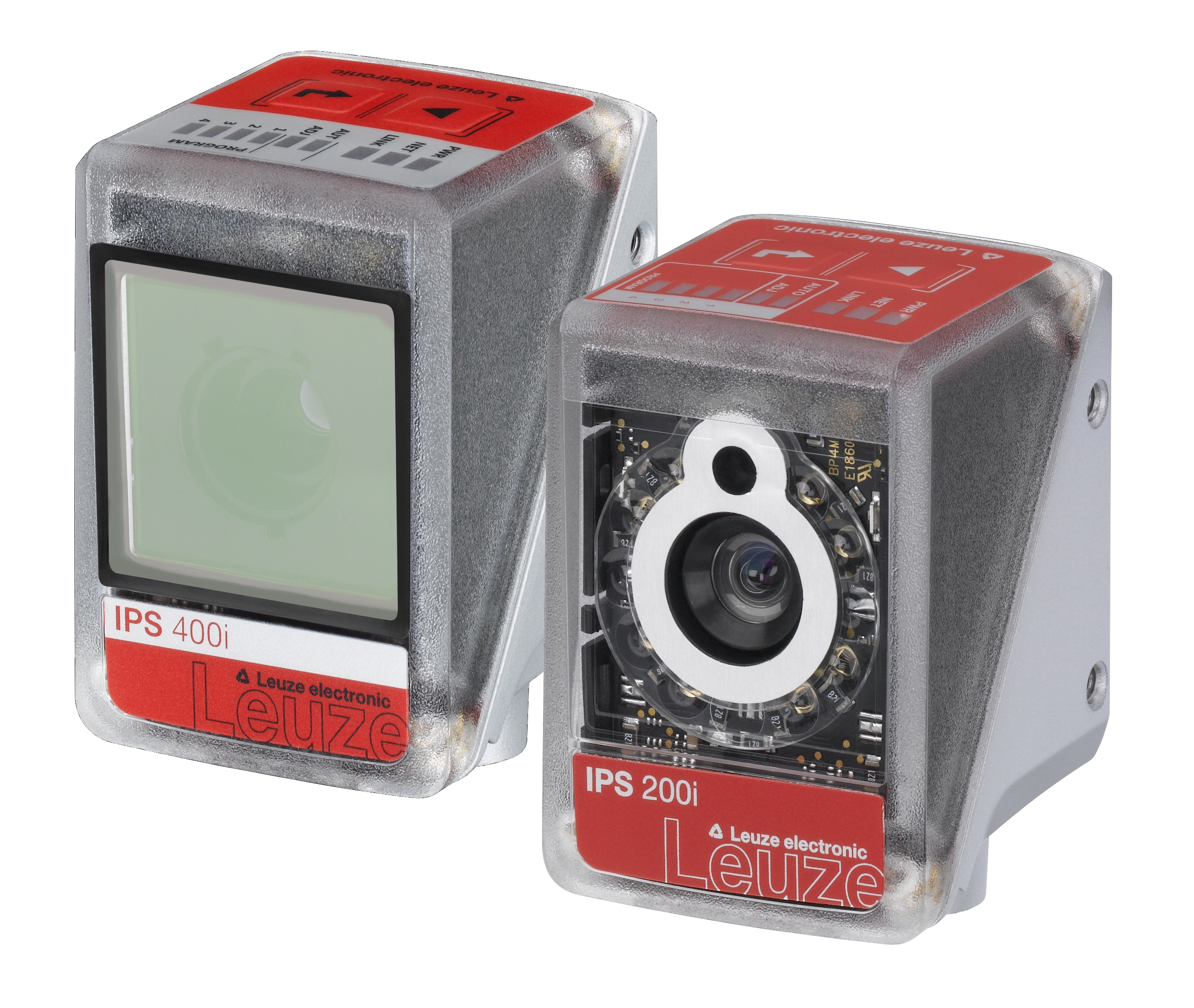

Ppic ips400i ips200i l

IPS 258i / IPS 458i Positioning Sensors
The camera-based sensor is designed for the compartment fine positioning of chassis (X-axis) and lifting unit (Y-axis) of the high-bay storage device.

Characteristics:

  • The IPS 258i /IPS 458i are camera-based sensors for the compartment fine positioning of a high-bay storage device with single or double compartment depths. With just one device model, a large working range from up to 2.400 mm can be achieved; the also available, heated version can be used at ambient temperatures as low as -30 °C.
  • Its dimensions are unrivalled with respect to the small size. As a result, installation in constrained spaces poses no problem.
  • Other highlights include the simple operation, the configuration via the integrated web server or directly on the sensor, the four alignment LEDs and the information about the function reserve, which is output as a quality score.

Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 12166 Year: 2024

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
Auto
Manual
MAC Parameter Configuration: Duplex
Half
Full
Auto
Manual
Address Configuration
Hardware Switches
BootP
DHCP
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O
