Distinctive CIP Services
Product Category
Weigh Scale
Device Profile
Generic Device: 0x2B

Saved to Favorites

Spcelocables profile

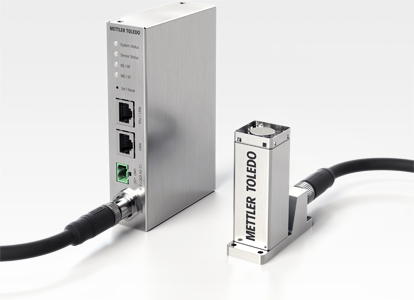

METTLER TOLEDO’s SPC is the world’s, smallest high precision EMFR smart sensor for extremely high-resolution (10g and 20g capacities and 0.01mg readability) and excellent repeatability. This module is so small that the electronics package is placed separately in a DIN module connected by a robust industrial cable that has everything on board, including electronics.

SPC modules are ideal for weighing different-sized containers used alone or in arrays for significantly enhanced productivity. Units are protected to IP44 (during weighing) IP65 (cleaning).

SPC's 25mm (1 inch) width allows integration where space is limited to significantly enhance productivity where multiple vials, ampoules, syringes, tablets, or capsules are weighed simultaneously and in parallel within a fraction of a second.

Quick connectivity via Ethernet TCP/IP, or EtherNet/IP (with, or without, PoE) with many control possibilities such as filter adjustment, maintenance overview via an internal web interface. SPC supports easy connectivity with Custom AOPs (Due May 2022), EDS and sample code for Cyclic (implicit) and Acyclic (Explicit) communication. Simultaneous cyclical update rate of 92 and 366Hz allows you to see both weight paths as well as critical condition monitoring: heartbeat, data ok, & synchronization, with meaningful alarms. High precision weight data is presented in signed real numbers (32bit floating point) over METTLER TOLEDO’s unique Standard Automation Interface (SAI). Power is 24VDC.

Once assembled, stainless steel housing and FDA-compliant sealing with optional IP65 wash-down protection eliminate the need to disassemble the weigh module for cleaning, further enhancing uptime.

+41 793 403 412
Odva conformant large

An ODVA Declaration of Conformity has been issued for the product(s) described on this page.

This Declaration confirms that the product(s) passed conformance and related testing at an ODVA vendor-independent Test Service Provider.

Doc icon   Download the Declaration of Conformity

DOC Number: 12242 Year: 2022

Eds icon   Download the EDS File
Maximum # Connections Supported
Total CIP
Explicit Messaging: Originator
I/O Messaging: Scanner
I/O Messaging: Target (Adapter)
Explicit Messaging: Target
Device Configuration
Hardware Switches
EDS File Instance in Device
Parameter Objects
Custom Software
MAC Parameter Configuration: Speed
10 Mbps
100 Mbps
MAC Parameter Configuration: Duplex
Address Configuration
Hardware Switches
Custom Software
CIP Safety Node
Vendor Specific
Safety Discrete I/O

bookmark Bookmark This Page

Member Gallery Listing From

Mettler toledo logo s color top rgb small prints 6351

ODVA Technologies Licensed to this Company

EtherNet/IP ID: 666
